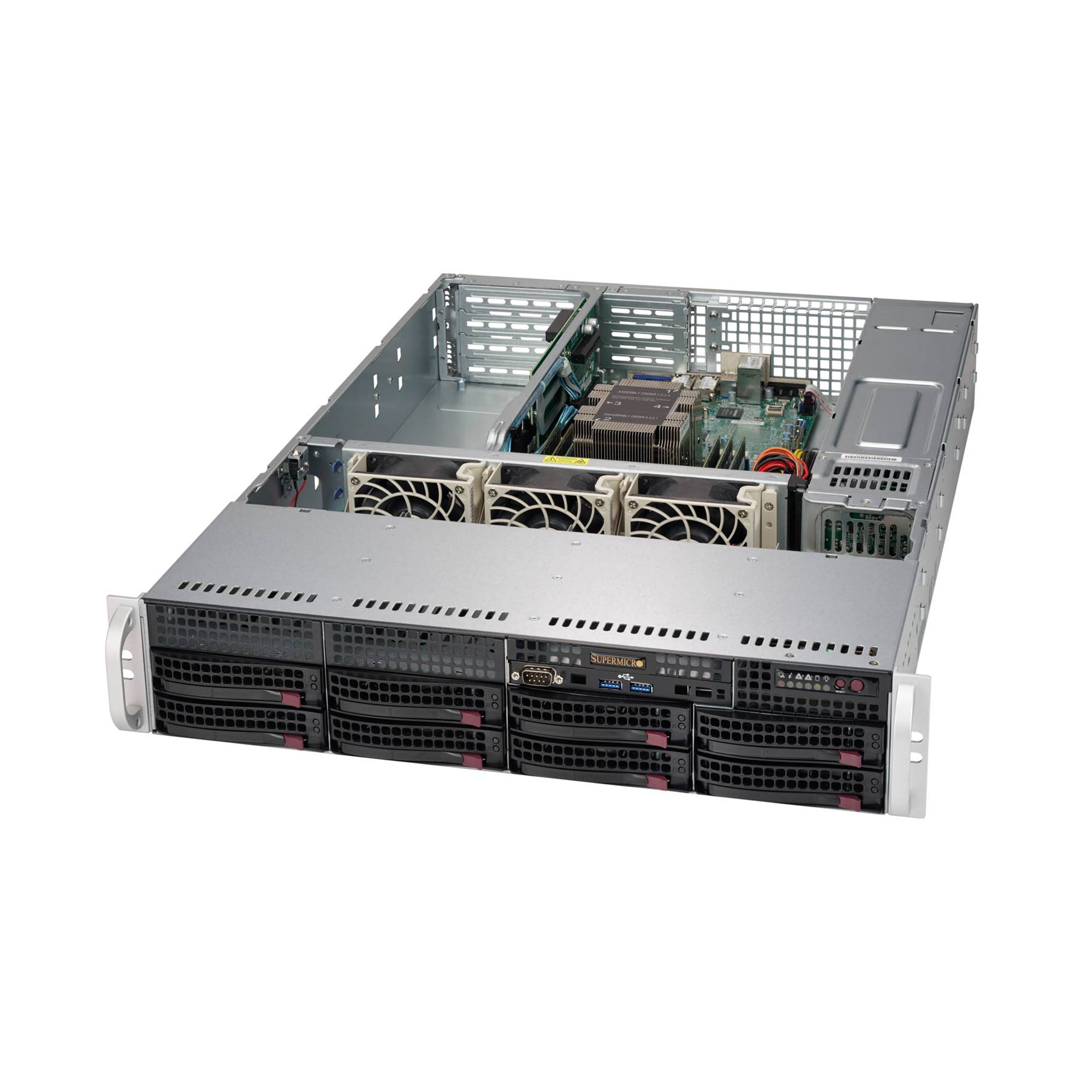

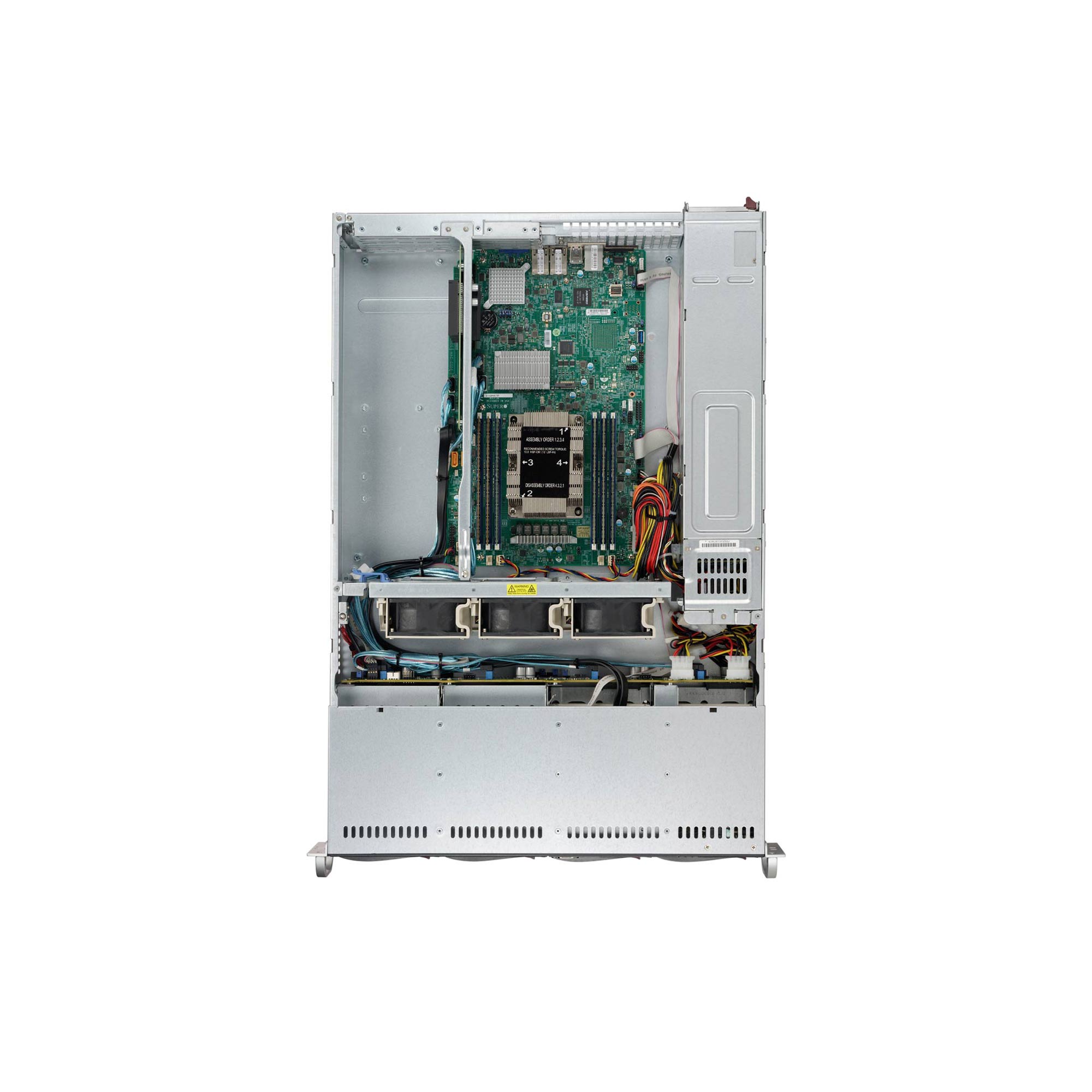

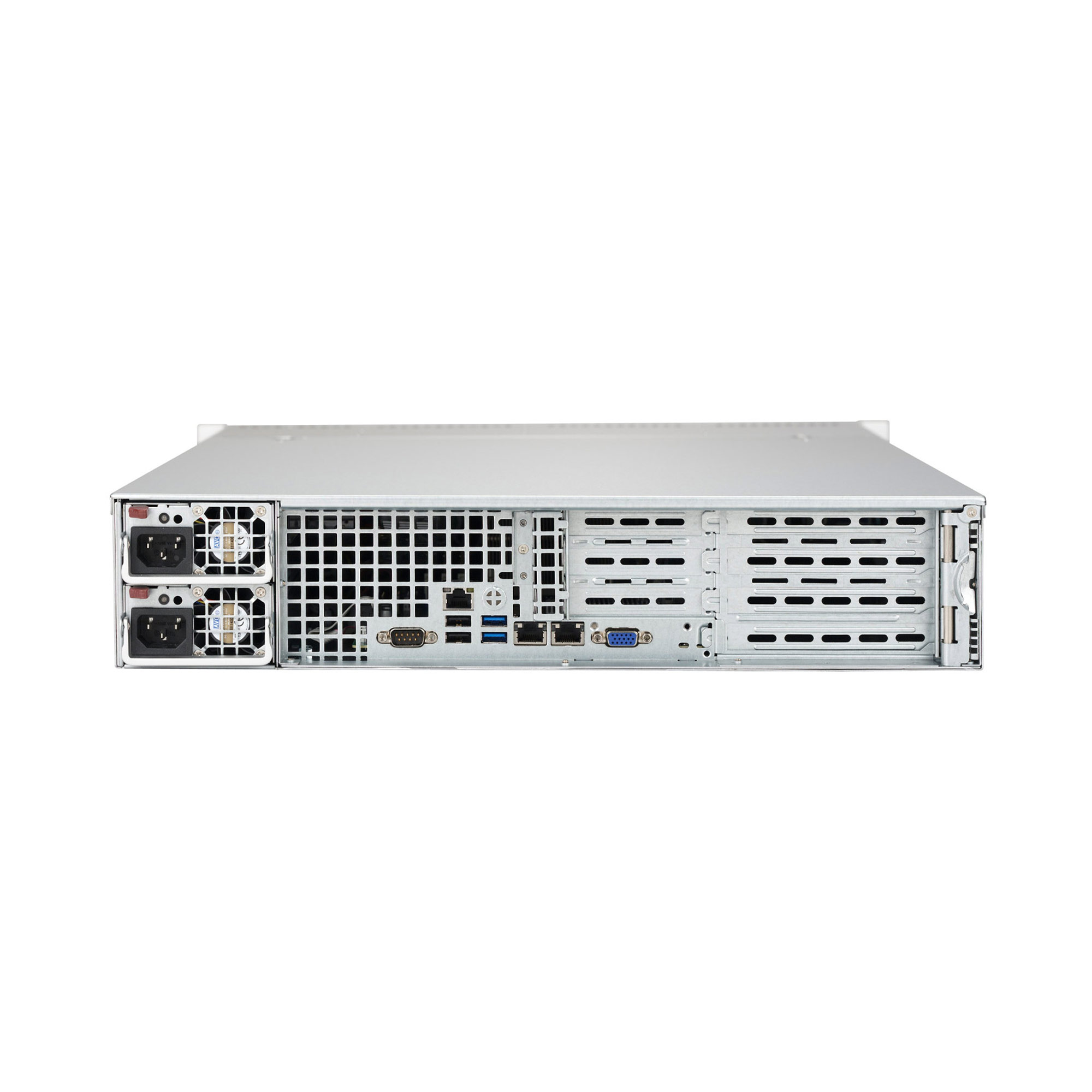

Name: Supermicro SYS-5029P-WTR 2U Rackmount WIO
SKU: 4747

Description

Key Features

Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)^‡
6 DIMMs; up to 1.5TB 3DS ECC
DDR4-2933MHz^†RDIMM/LRDIMM
4 PCI-E 3.0 x8 (FHFL) slots,
1 PCI-E 3.0 x8 (LP) slot
8 Hot-swap 3.5″ SATA3 drive bays
2x 10GBase-T ports with Intel X722 + X557
1 VGA, 2 COM, 4 USB 3.0, 2 USB 2.0
2 SuperDOM (Disk on Module) ports
600W/650W Redundant Platinum Level power supplies (Updated for 2022 Version)

Specifications

Motherboard

Super X11SPW-TF


Processor

CPU	Single Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡ Support CPU TDP 70-205W*
Cores	Up to 28 Cores
Note	* Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity	6 DIMM slots Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C622 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual 10GBase-T LAN with Intel® X722 + X557
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC


Input / Output

SATA	10 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) 7 USB 2.0 ports (2 rear + 5 headers)
Video	1 VGA port
Serial Port / Header	2 COM ports (1 rear, 1 front)
SuperDOM	2 SuperDOM (Disk on Module) ports with built-in power


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions and Weight

Height	3.5″ (89mm)
Width	17.2″ (437mm)
Depth	25.5″ (647mm)
Package	26.5″ (W) x 11″ (H) x 34″ (L)
Weight	Gross Weight: 59 lbs (26.76 kg) Net Weight: 34 lbs (15.42 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Information LED Information LED (temp., status)


Expansion Slots

PCI-Express	4 PCI-E 3.0 x8 (FHFL) slots 1 PCI-E 3.0 x8 (LP) slot
M.2	1x M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector


Power Supply

600W/650W high-efficiency redundant power supplies with PMBus
AC Input	100-127 Vac (600W) 200-240 Vac (650W)
DC Output	200-240 Vdc (650W)
+12V	50 Amp (600W) 54.16 Amp (650W) 54.16 Amp (650W)
12V Standby	4A
Certification	Platinum Certified [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
