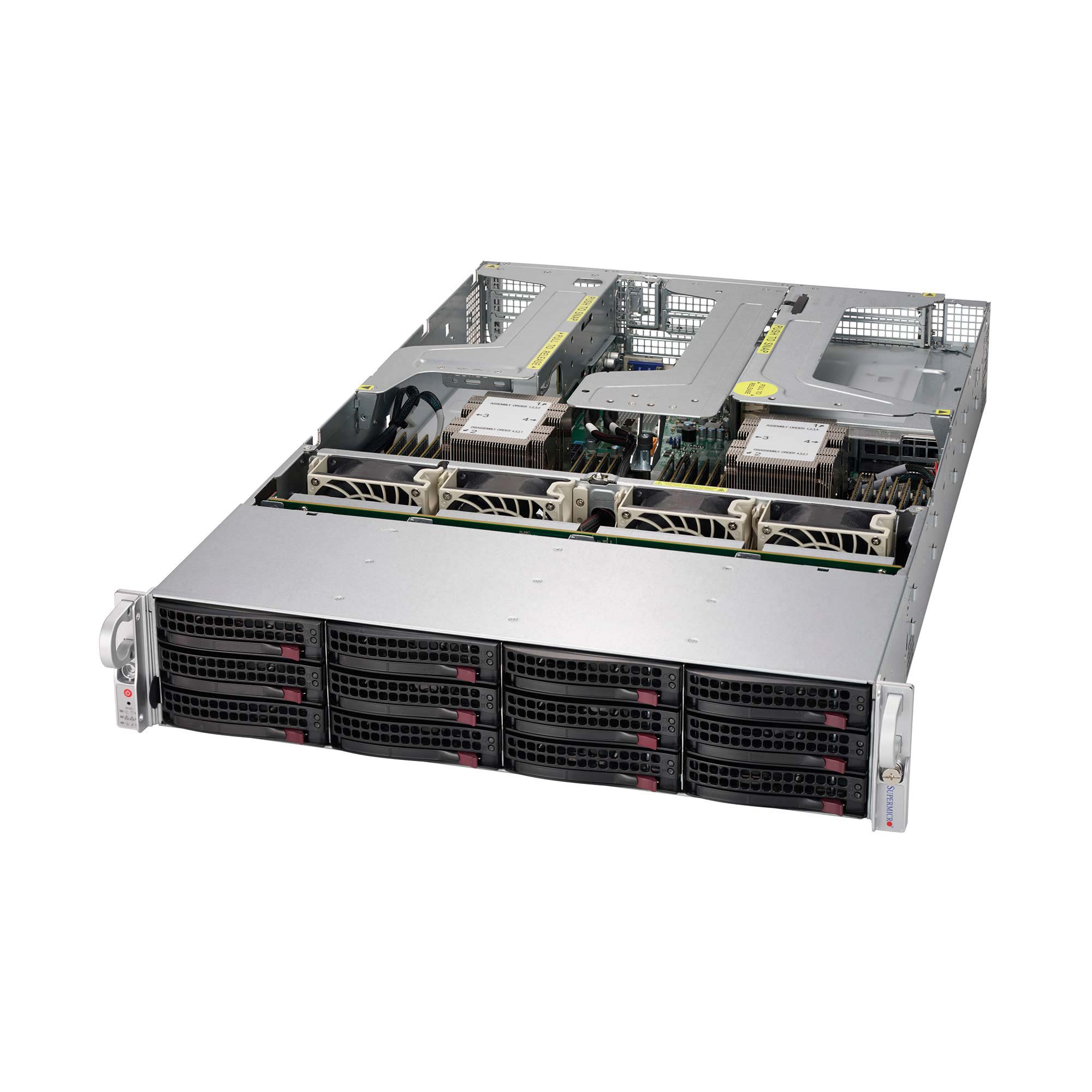

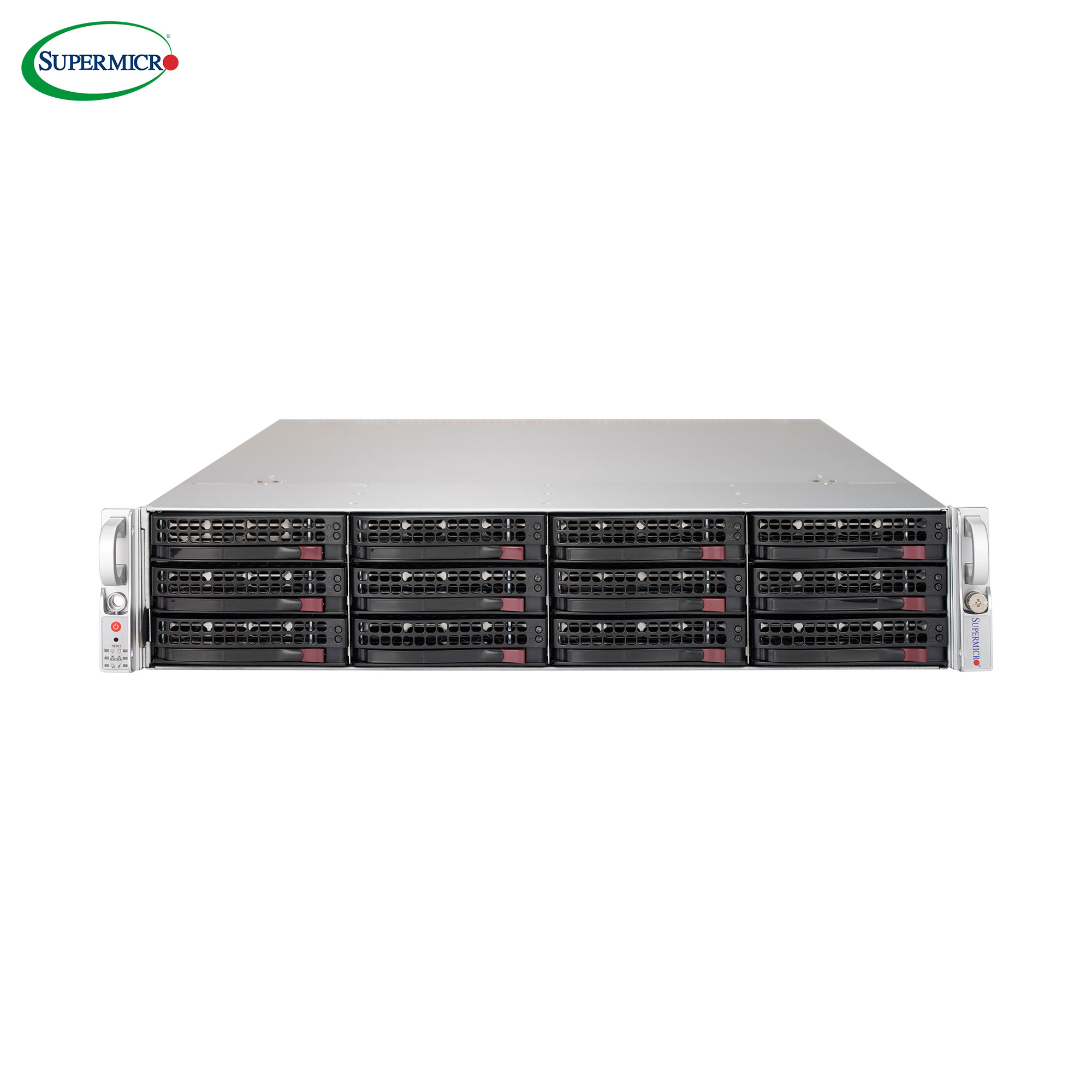

Supermicro SYS-6029U-TR4T Rackmount Ultra

Key Applications

Virtualization
Hyperconverge Storage
Cloud Computing
High End Enterprise Server
Flexible Networking Options



Categories: , ,

Description

Key Features

  • Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)    ‡
  • 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz    †RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM    ††
  • 2 PCI-E 3.0 x16 slots (FH, 10.5″ L),
    4 PCI-E 3.0 x8 slots (FH, 10.5″ L),
  • 1 PCI-E 3.0 x8 slot (LP)
  • 4x 10GBase-T LAN ports via Intel X710-BM1
  • 12 Hot-swap 3.5″ drive bays: 12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3), Optional 2 hot-swap 2.5″ rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
  • 4 Heavy duty 8cm fans
  • 1000W High efficiency (96%) Redundant PSU; Titanium Level



Specifications

Product SKUs
SYS-6029U-TR4T SuperServer 6029U-TR4T (Black)




Motherboard

Super X11DPU




Processor
CPU Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
Dual UPI up to 10.4GT/s

Support CPU TDP 70-205W
Cores Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)




System Memory
Memory Capacity 24 DIMM slots

Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM††
Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

2666 ECC DDR4 NVDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.




On-Board Devices
Chipset Intel® C621 chipset
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity 4x 10GBase-T ports via AOC-2UR66-i4XTF (Intel® XL710-BM1 + X557-AT4)
IPMI Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC




Input / Output
SATA 12 SATA3 (6Gbps) ports
SAS 8 SAS3 + 4 SAS3/NVMe support optional
LAN 4 RJ45 10GBase-T Ethernet LAN ports

1 RJ45 Dedicated IPMI LAN port
USB 3 USB 3.0 ports (2 rear, 1 Type A)
Video 2 VGA ports (1 rear, 1 onboard)
Serial Port / Header 1 Serial header
DOM 2 SuperDOM (Disk on Module) ports




System BIOS
BIOS Type AMI 32Mb SPI Flash ROM




Management
Software Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

NMI

SSM, SPM, SUM

SuperDoctor® 5
Power Configurations ACPI Power Management




PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator
FAN Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment

Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-829U2TS-R1K02P-T




Dimensions and Weight
Width 17.2″ (437mm)
Height 3.5″ (89mm)
Depth 28.46″ (723mm)
Weight Net Weight: 36 lbs (16.4 kg)

Gross Weight: 72 lbs (32.7 kg)
Available Colors Black




Front Panel
Buttons Power On/Off button

System Reset button
LEDs Power status LED

HDD activity LED

Network activity LEDs

System information (overheat/UID) LED




Expansion Slots
PCI-Express 2 PCI-E 3.0 x16 (FH, 10.5″ L)

4 PCI-E 3.0 x8 (FH, 10.5″ L)

1 PCI-E 3.0 x8 (LP)



(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)




Drive Bays / Storage
Hot-swap 12 Hot-swap 3.5″ drive bays

12 SATA3 ports by default;
Optional 8 SAS3 + 4 NVMe/SAS3
M.2 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)

2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2




Backplane
2U SAS/SATA backplane




System Cooling
Fans 4 Heavy duty 8cm PWM fans




Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power 800W: 100 – 127Vac

1000W: 200 – 240Vac

1000W: 200 – 240Vdc (for CCC only)
Dimension
(W x H x L)		 73.5 x 40 x 203 mm
Input 100-127Vac / 9.8 – 7A / 50-60Hz

200-240Vac / 7 – 5A / 50-60Hz

200-240Vdc / 7 – 5A (for CCC only)
+12V Max: 66.7A / Min: 0A (100-127Vac)

Max: 83A / Min: 0A (200-240Vac)

Max: 83A / Min: 0A (200-240Vdc)
12Vsb Max: 2.1A / Min: 0A
Output Type 25 Pairs Gold Finger Connector
Certification   Titanium Level
[ Test Report ]




Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)Operating Relative Humidity:
8% to 90% (non-condensing)Non-operating Relative Humidity:
5% to 95% (non-condensing)
