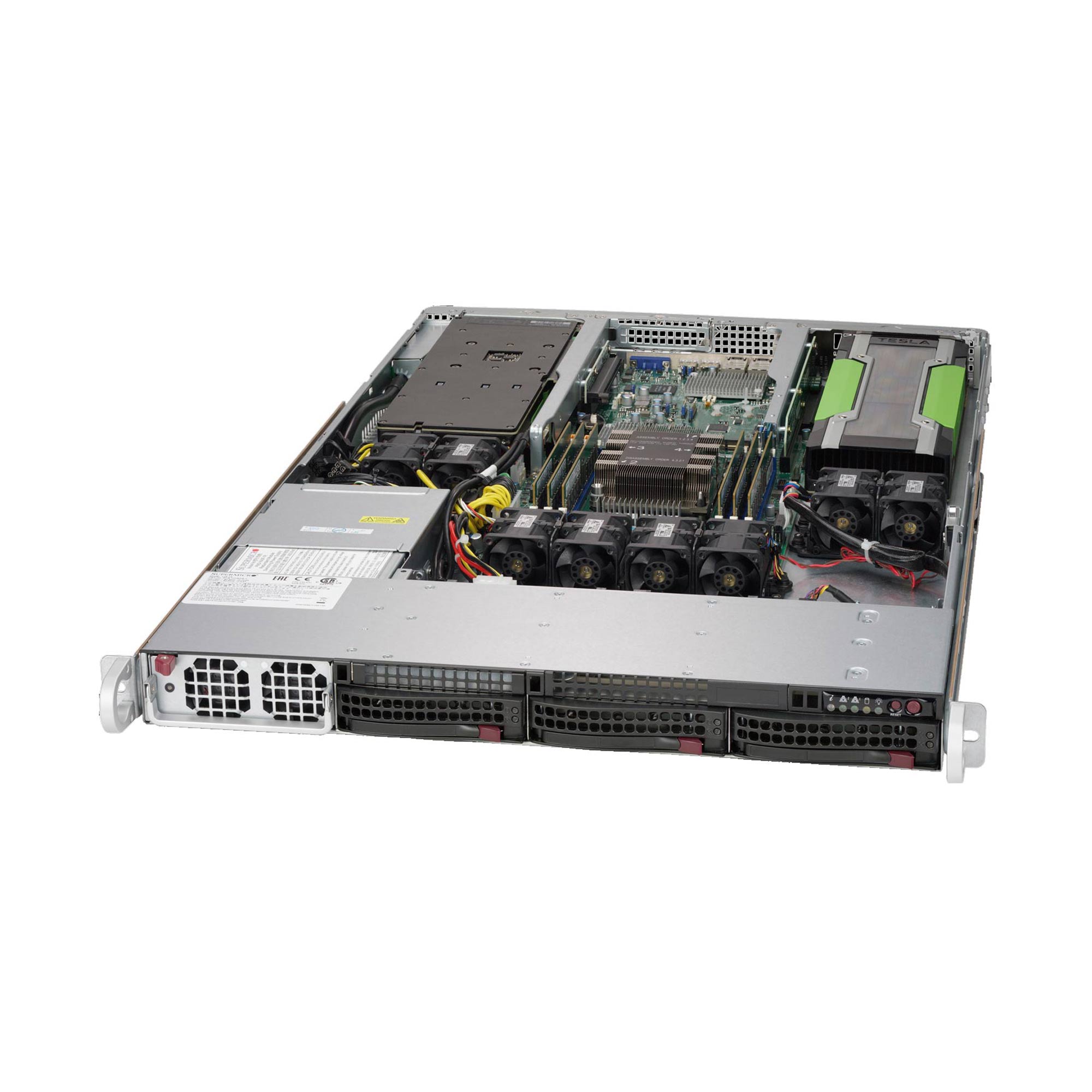

Name: Supermicro SYS-5019GP-TT 1U Rackmount UP
SKU: 4808

Description

Key Features

Supports up to 2 Active/Passive Cooling NVIDIA® GPUs in 1U
Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)^‡
6 DIMMs; up to 1.5TB 3DS ECC
DDR4-2933MHz^†RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM^††
2 PCI-E 3.0 x16 slots (support double-width GPU), 1 PCI-E 3.0 x16 low-profile slot (center left)
3 Hot-swap 3.5″ SAS/SATA drive bays, 1 slim DVD-ROM drive bay
2x 10GBase-T LAN ports via Intel X550
2 M.2 form factor 2280, supports both M.2 NVMe and SATA SSD
8 Heavy duty 4cm counter-rotating 4cm fans with air shroud & optimal fan speed control
1400W High-efficiency Power Supply Platinum Level (94%+)

Specifications

Motherboard

Super X11SPG-TF


Processor

CPU	Single Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡ Support CPU TDP 70-205W
Cores	Up to 28 Cores
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


GPU

Supported GPUs	2 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) NVIDIA V100, M10, T4, Quadro RTX Supports both active and passive cooled GPUs Compatible GPU list
CPU-GPU Interconnect	PCI-E Gen 3 x16 Switch CPU-GPU Interconnect


System Memory

Memory Capacity	6 DIMM slots Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM††
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity	Intel® X550 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500


Input / Output

SATA	6 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear)
Video	1 VGA port
Serial Port	1 Fast UART 16550 header
DOM	2 DOM (Disk on Module) power connectors


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions

Height	1.7″ (43mm)
Width	17.2″ (437mm)
Depth	28.2″ (716mm)
Weight	Net Weight: 28 lbs (12.70 kg) Gross Weight: 36 lbs (16.33 kg)
Available Color	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED


Expansion Slots

PCI-Express	2 PCI-E 3.0 x16 (FHFL) slots – supporting up to 2 GPUs 1 PCI-E 3.0 x16 slot (left riser)


Drive Bays / Storage

Hot-swap	3 Hot-swap 3.5″ SAS/SATA drive bays
M.2	Supports 2 M.2 form factor 2280 Supports both M.2 NVMe and SATA SSD
Peripheral Bay(s)	1 slim DVD-ROM drive bay or 1 USB + COM port tray



System Cooling

Fans	8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control


Power Supply

1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage	1200W: 100-140 V, 14.7-10.5A, 50-60 Hz 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby	6 Amp
+12V	100 Amp/115 Vac 117 Amp/230 Vac
With Power Distributor	+5V: 14 Amp
Certification	Platinum Certified


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
