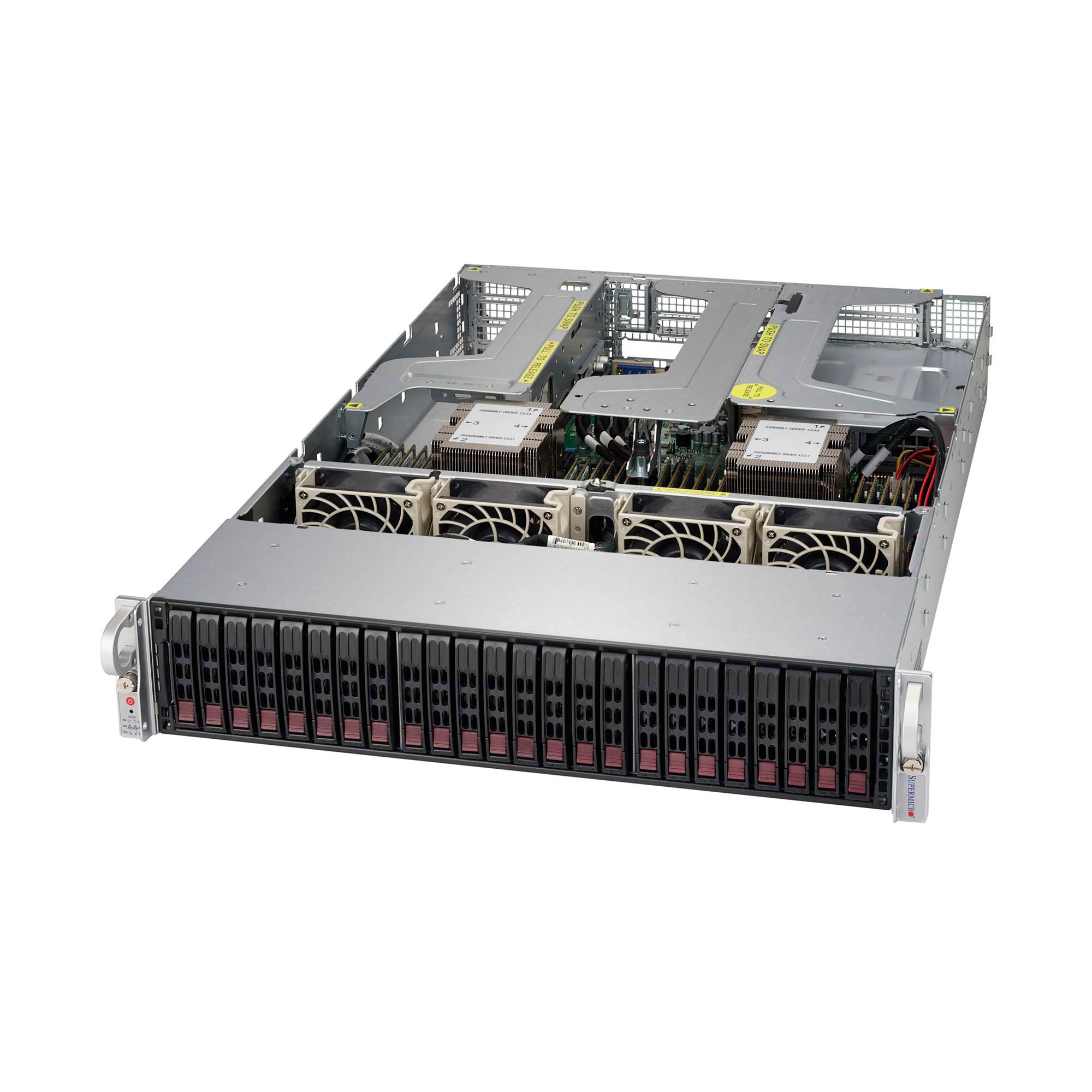

Name: Supermicro SYS-2029U-TR42U RackmountUltra
SKU: 4737

Description

Key Features

Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡
24 DIMMs; up to 6TB 3DS ECC
DDR4-2933MHz^† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM^††
2 PCI-E 3.0 x16 slots (FH, 10.5″ L),
4 PCI-E 3.0 x8 slots (FH, 10.5″ L),
1 PCI-E 3.0 x8 slot (LP)
4x 10GBase-T LAN ports via Intel X540
24 Hot-swap 2.5″ drive bays; 14 SATA3 (optional 20 SAS3 + NVMe/SAS3),
Optional 2 hot-swap 2.5″ rear drive bays for SSDs;
Optional M.2 NVMe and SATA3 ports
4 Heavy duty 8cm PWM fans
1000W Redundant Power Supplies Titanium Level (96%)

Specifications

Motherboard

Super X11DPU


Processor

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity	24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM††
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM 2666 ECC DDR4 NVDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity	4x 10GBase-T ports via AOC-2UR66-i4XTF (Intel® XL710-BM1 + X557-AT4)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC

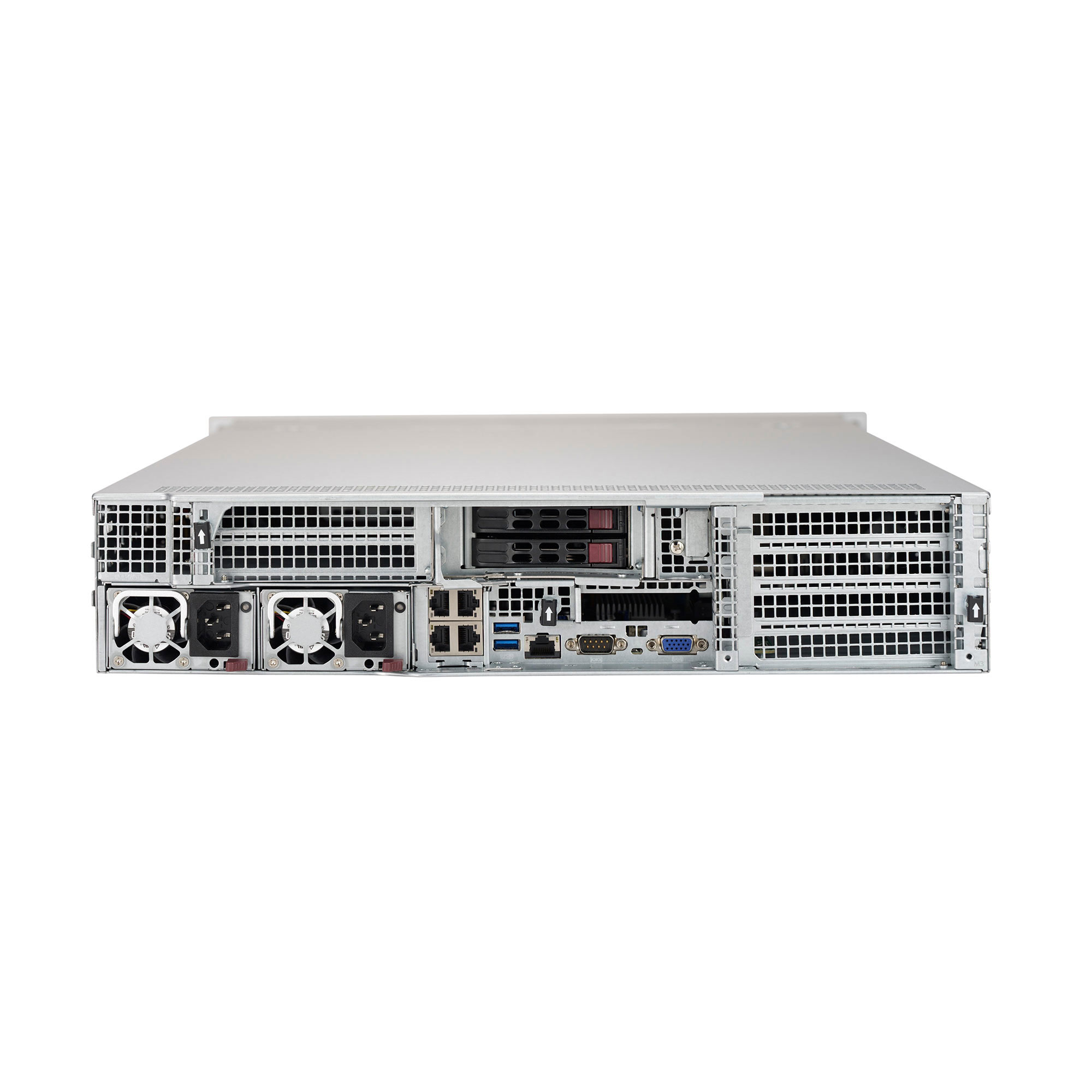

Input / Output

SATA	14 SATA3 (6Gbps) ports
LAN	4 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear, 2 onboard header, 1 Type A)
Video	1 VGA Connector
Serial Header	1 Serial header
DOM	2 SuperDOM (Disk on Module) ports


Management

Software	Intel® Node Manager Redfish API IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5
Power Configurations	ACPI Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions and Weight

Width	17.2″ (437mm)
Height	3.5″ (89mm)
Depth	27.76″ (705.3mm)
Weight	Net Weight: 36 lbs (16.4 kg) Gross Weight: 72 lbs (32.7 kg)
Available Colors	Black

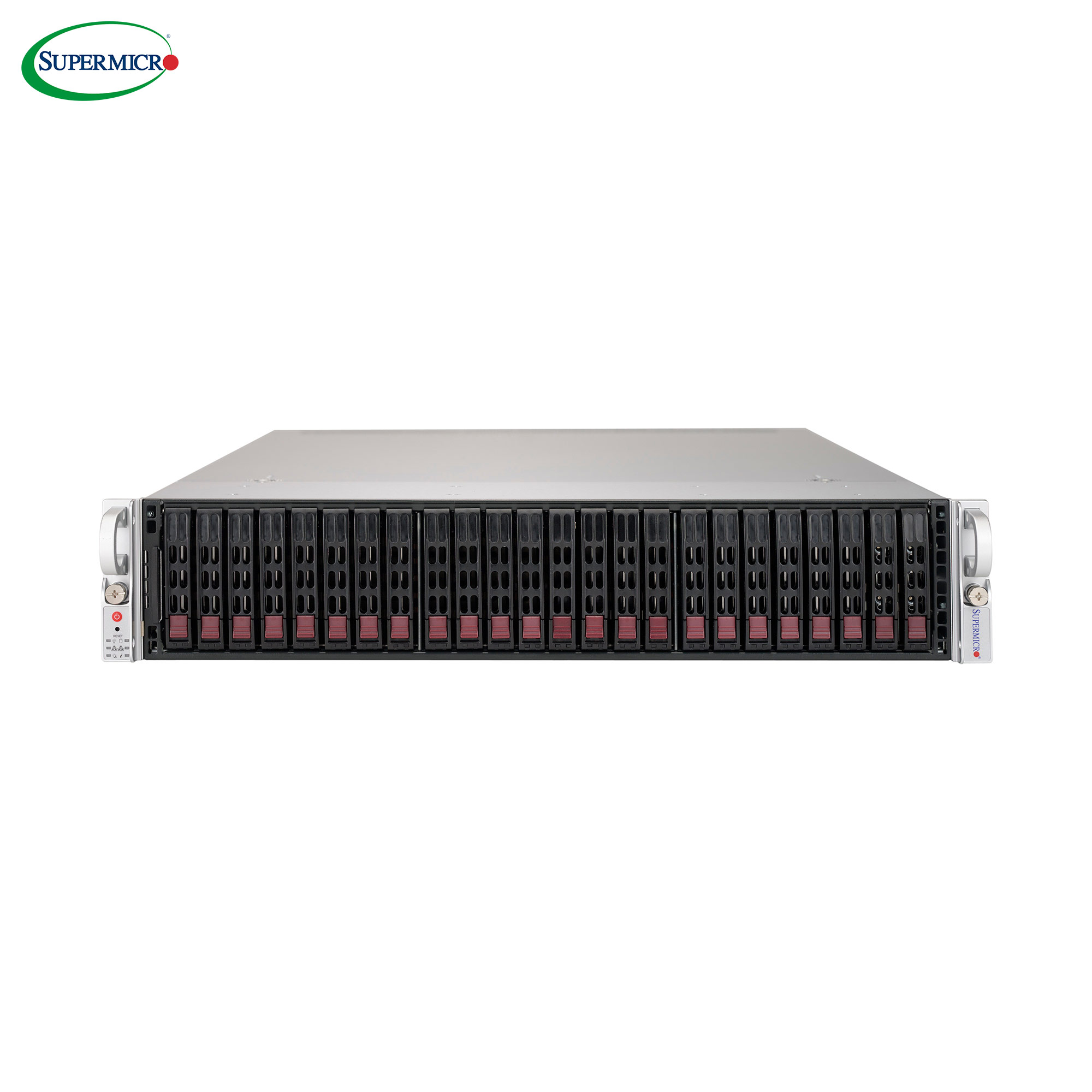

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED


Expansion Slots

PCI-Express	2 PCI-E 3.0 x16 (FH, 10.5″ L) 4 PCI-E 3.0 x8 (FH, 10.5″ L) 1 PCI-E 3.0 x8 (LP) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)


Drive Bays / Storage

Hot-swap	24 Hot-swap 2.5″ drive bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3)
M.2	1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list) 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

Backplane

2U SAS/SATA backplane


Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power	800W: 100 – 127Vac 1000W: 200 – 240Vac 1000W: 200 – 240Vdc (for CCC only)
Dimension (W x H x L)	73.5 x 40 x 203 mm
Input	100-127Vac / 9.8 – 7A / 50-60Hz 200-240Vac / 7 – 5A / 50-60Hz 200-240Vdc / 7 – 5A (for CCC only)
+12V	Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) Max: 83A / Min: 0A (200-240Vdc)
12Vsb	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
