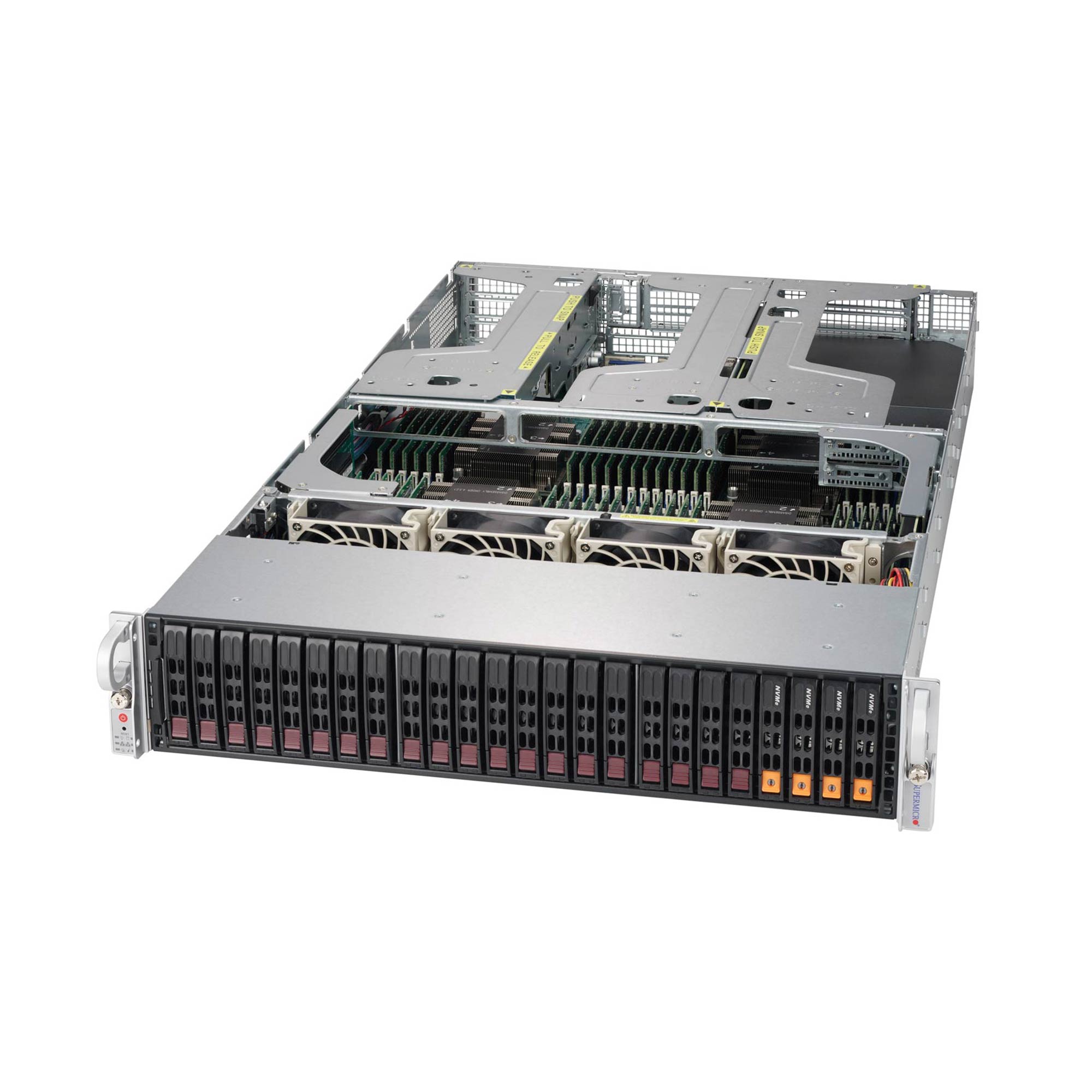

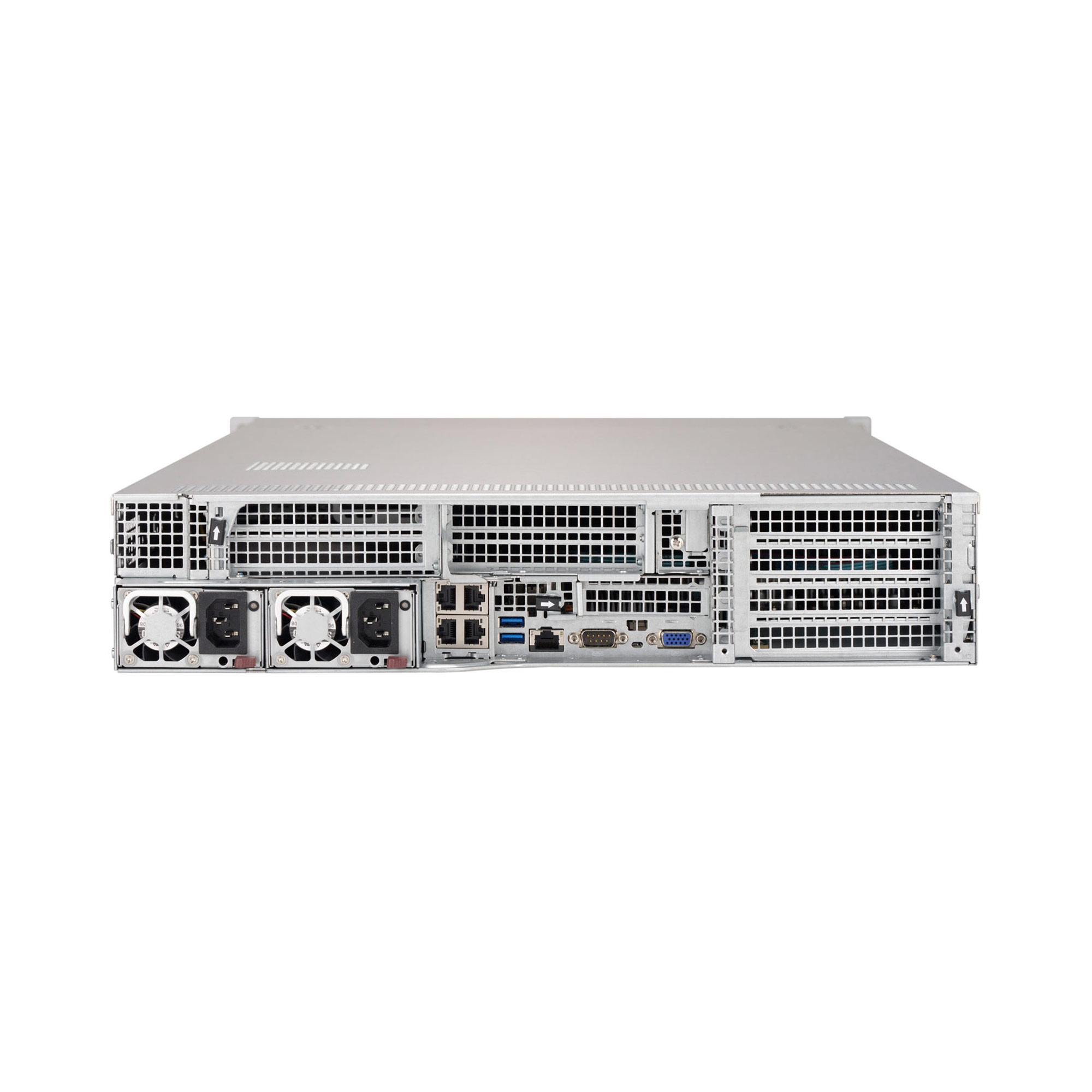

Name: Supermicro SYS-2049U-TR4 2U Rackmount-Ultra
SKU: 4706

Description

Key Features

Quad Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡
48 DIMMs; up to 12TB 3DS ECC DDR4-2933MHz^†RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM^††
5 PCI-E 3.0 x8 slots, 6 PCI-E 3.0 x16 slots
4 GbE LAN ports via AOC-2UR66-i4G 1 dedicated IPMI LAN port
24 Hot-swap 2.5″ SAS3/SATA3 drive bays supported via optional Add-on RAID controller card; 4 Hybrid ports with NVMe support via extra AOC
Optional up to 2 Active Cooling GPUs
4x 8cm heavy duty fans
1600W Redundant Power Supplies Titanium Level (96%)

Specifications

Motherboard

Super X11QPH+


Processor

CPU	Quad Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-165W with IVR, 205W supported with optional kit
Cores	Up to 28 Cores
Note	‡ BIOS version 3.0 or above is required to support 2nd Gen Intel® Xeon® Scalable processors


System Memory

Memory Capacity	48 DIMM slots Up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM††
Memory Type	2933†/2666MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 via Intel C621; RAID 0, 1, 5, 10
Network Connectivity	4 Gigabit Ethernet ports via AOC-2UR66-i4G; Other options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC


Input / Output

SATA	12 SATA3 (6Gbps) ports
SAS	24 SAS3 ports support via optional Add-on Cards
NVMe	4 Hybrid ports with NVMe support via AOC
LAN	4 RJ45 GbE LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
Video	1 VGA Connector
Serial Port / Header	1 COM port (rear)
DOM	2 SuperDOM (Disk on Module) ports


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS


Management

Software	SuperDoctor® 5 Watch Dog NMI SUM IPMI 2.0
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions and Weight

Width	17.2″ (437mm)
Height	3.5″ (89mm)
Depth	30.7″ (780mm)
Weight	Net Weight: 43 lbs (19.4 kg) Gross Weight: 69 lbs (31.2 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED


Expansion Slots

PCI-Express	5 PCI-E 3.0 x8 slots 6 PCI-E 3.0 x16 slots (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers. See AOC Support for details.)


Drive Bays

Hot-swap	24 Hot-swap 2.5″ SAS3/SATA3 drive bays Optional 24 SAS3 ports via AOC Optional 20 SAS3 ports via AOC + 4 NVMe ports via AOC


Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power	*1600W/1000W**
Dimension (W x H x L)	73.5 x 40 x 203 mm
Input	100-127Vac / 13 – 9A / 50-60Hz 200-240Vac / 10 – 8A / 50-60Hz*
+12V	Max: 83.3A / Min: 0A (100-127Vac) Max: 133A / Min: 0A (200-240Vac)
12Vsb	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]
* Supported with certain configuration and operating temperature limitations.


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Supermicro SYS-2049U-TR4 2U Rackmount-Ultra
