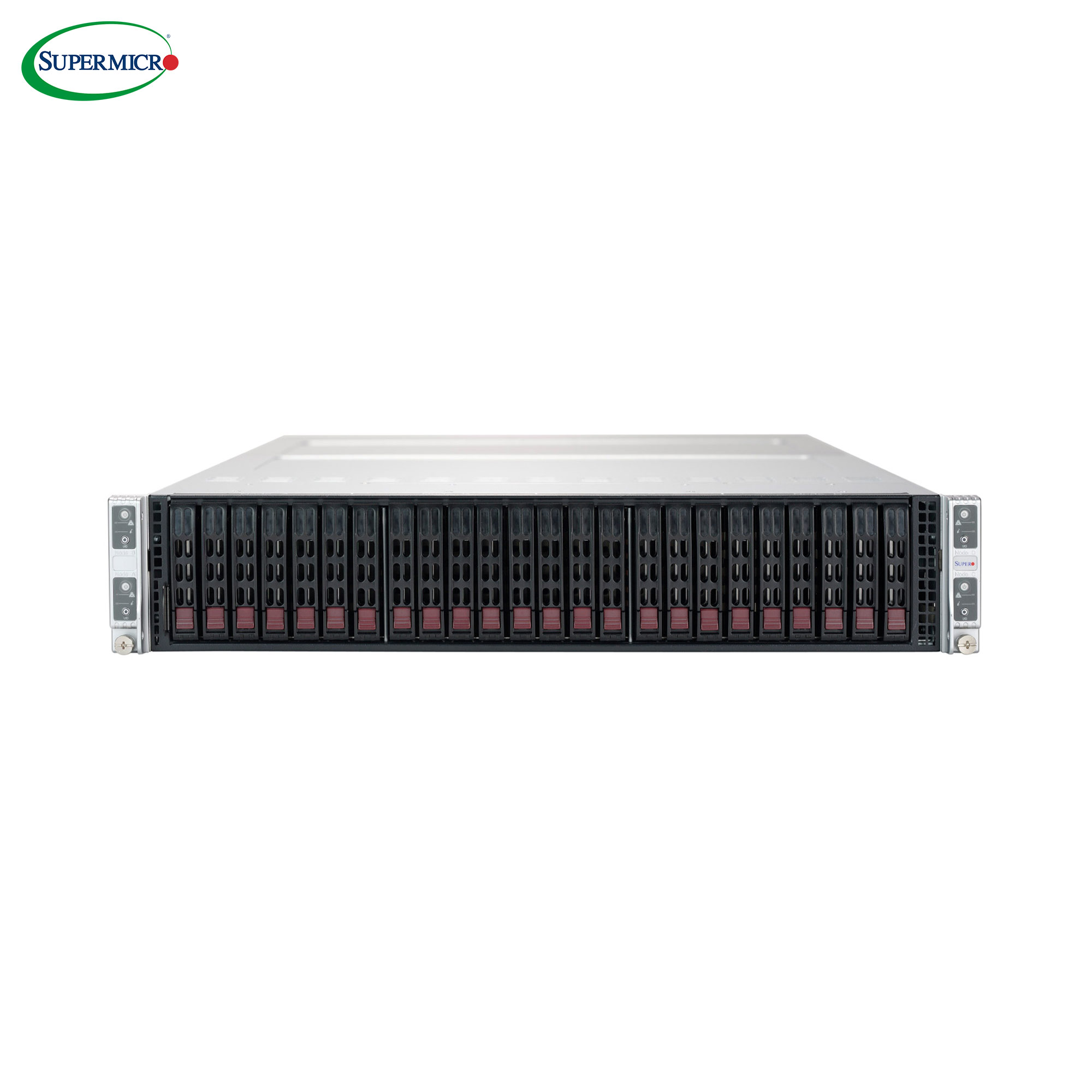

Name: Supermicro SYS-2029TP-HC1R 2U 4-Nodes TwinPro
SKU: 4716

Description

Key Features

Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡
16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz^†RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM^††
2 PCI-E 3.0 x16 (LP) slots
Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
6 Hot-swap 2.5″ SAS/SATA drive bays
Broadcom 3108 SAS3 controller; RAID 0, 1, 5, 6, 10, 50, 60 with SuperCap option
Up to 2200W Redundant Power Supplies Titanium Level (96%)

Specifications

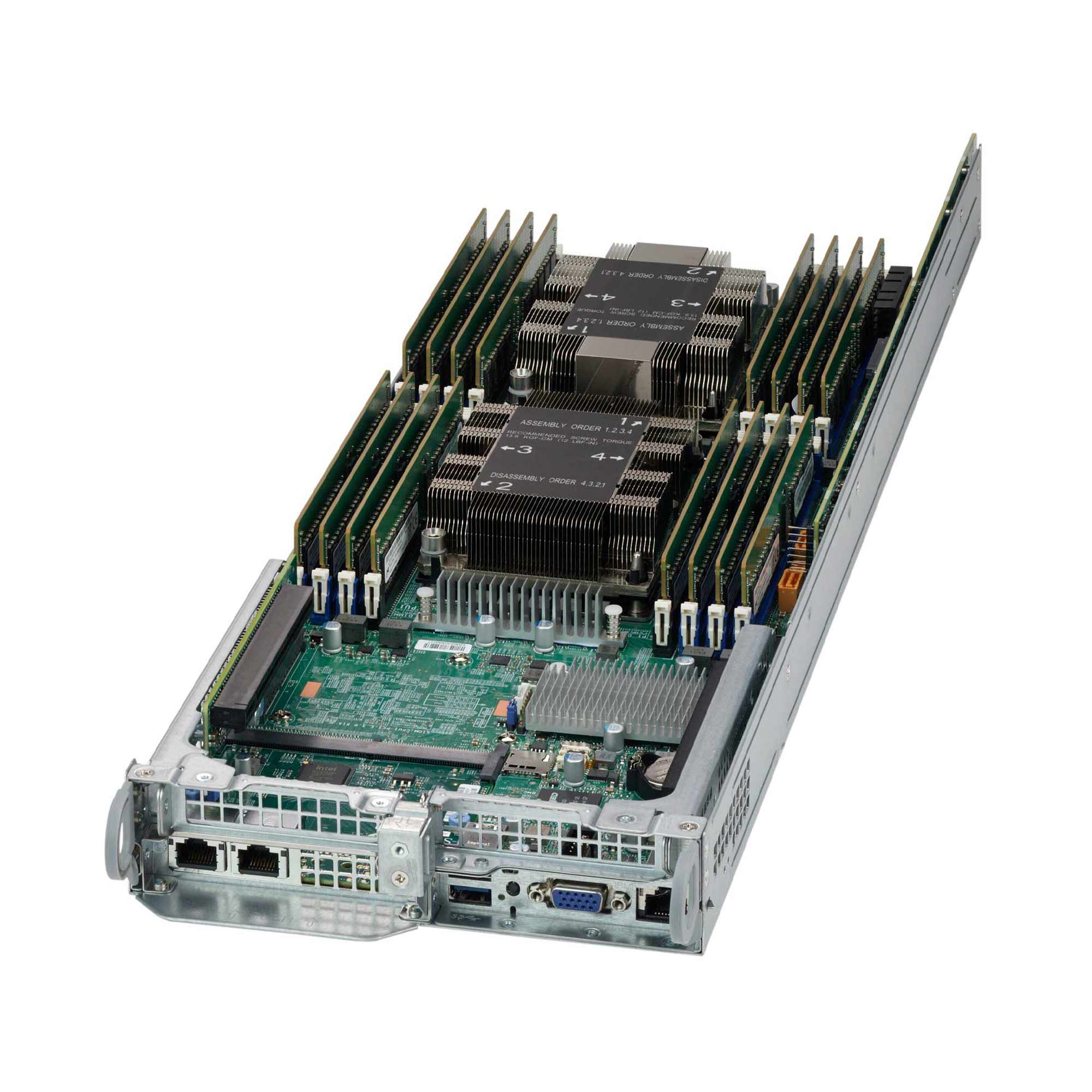

Motherboard (Four per System)

Super X11DPT-PS


Processor (per Node)

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-165W*
Cores	Up to 28 Cores
Note	* Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.
Note	*Processors ending N or S are optimized for networking and storage applications. Customer need POC their application and observe any thermal throttling before large deployment.
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory (per Node)

Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM††
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices (per Node)

Chipset	Intel® C621 chipset
SAS	Broadcom 3108 SAS3 (12Gbps) controller, 2GB cache; RAID 0, 1, 5, 6, 10, 50, 60 support Optional SuperCap
Network Controllers	Barebones and Complete System must have at least one SIOM or network card installed per node
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC


Input / Output (per Node)

SAS	6 SAS3 (12Gbps) ports
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
VGA	1 VGA port
Serial Port / Header	1 Fast UART 16550 port / 1 Header (internal)
Others	2 SuperDOM support on the motherboard. SuperDOM is for OS boot.


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 Watchdog
Power Configurations	ACPI Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 5+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Omni-Path Fabric CPUs	Do not support


Dimensions and Weight

Width	17.25″ (438mm)
Height	3.47″ (88mm)
Depth	28.5″ (724mm)
Weight	Gross Weight: 90 lbs (40.9kg) Net Weight: 72 lbs (32.7 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED


Expansion Slots (per Node)

PCI-Express	2 PCI-E 3.0 x16 Low-profile slots 1 SIOM card support Note: Barebones and Complete System must bundle with Network Card Note: With only one CPU installed, SXB2 M.2 and SXB4 riser card slots not function. This SKU does not support AOC-SMG3-2H8M2 M.2 carrier.


System Cooling

Fans	4 Heavy duty 8cm PWM fans with optimal fan speed control


Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input	1200W with Input 100-127Vac 1800W with Input 200-220Vac 1980W with Input 220-230Vac 2090W with Input 230-240Vac 2200W with Input 220-240Vac (for UL/cUL use only) 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency	50-60Hz
Dimension (W x H x L)	76 x 40 x 336 mm
+12V	Max: 100A / Min: 0A (100-127Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 174.17A / Min: 0A (230-240Vac) Max: 183.3A / Min: 0A (220-240Vac)
5VSB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
