Name: Supermicro SYS-6019P-WTR 2U Rackmount WIO
SKU: 4821

Description

Key Features

Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
12 DIMMs; up to 3TB 3DS ECC
DDR4-2933MHz^† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM^††
2 PCI-E 3.0 x16 (FHHL) slots,
1 PCI-E 3.0 x8 (LP) slot,
1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller),
1 PCI-E 3.0 x4 NVMe M.2 slot
4 Hot-swap 3.5″ SAS3/SATA3 drive bays
2 1GbE LAN ports via Intel C621
1 VGA, 4 USB 3.0 (rear)
750W Redundant Power Supplies Platinum Level High-efficiency

Specifications

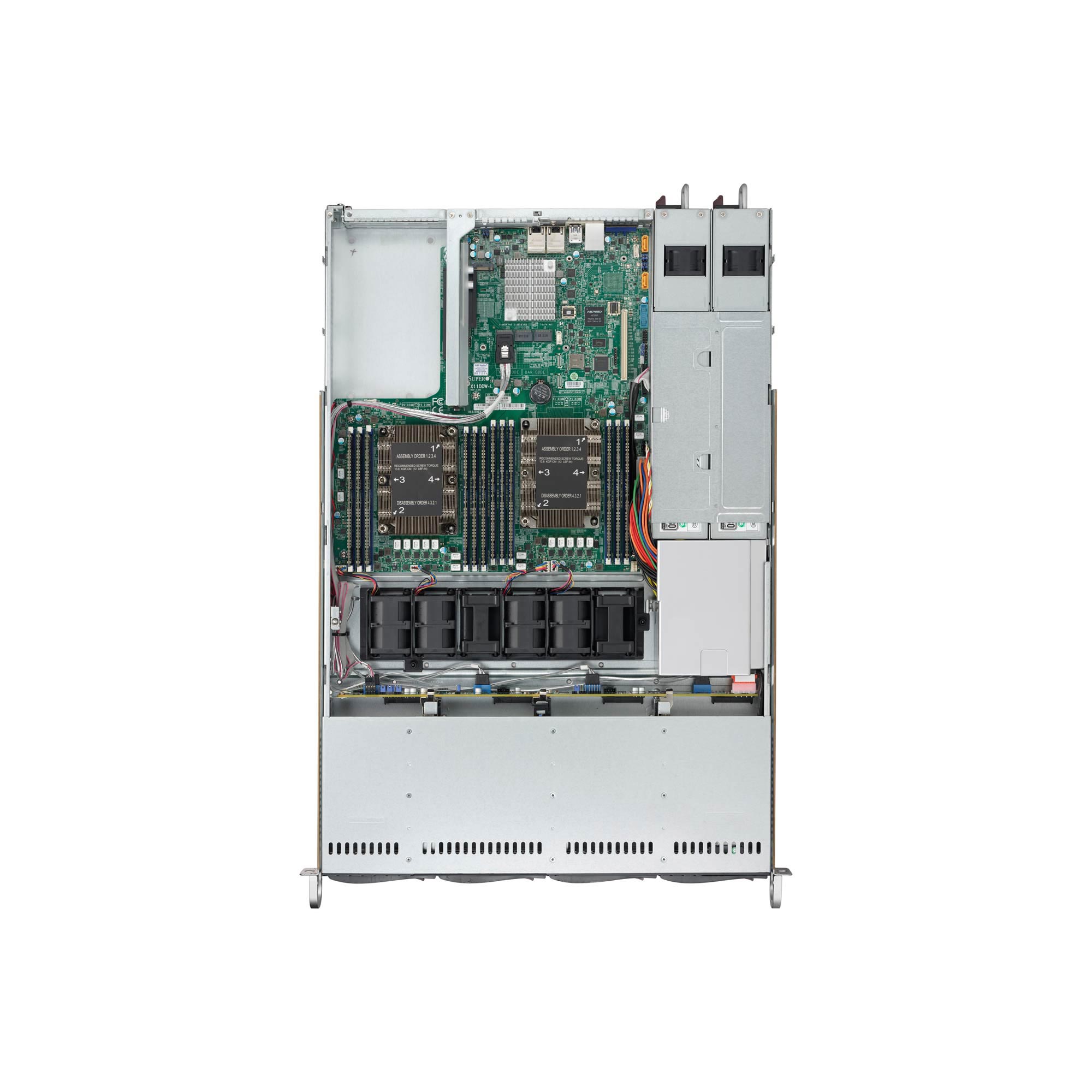

Motherboard

Super X11DDW-L


Processor/Cache

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-165W*
Cores	Up to 28 Cores
Note	* Certain high frequency optimized CPUs within 165W TDP are not supported, such as Intel Gold 6144, 6146, 6244, 6246, 6250 and 6256.
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.


System Memory

Memory Capacity	12 DIMM slots Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM††
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual LAN with Gigabit Ethernet from C621
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC

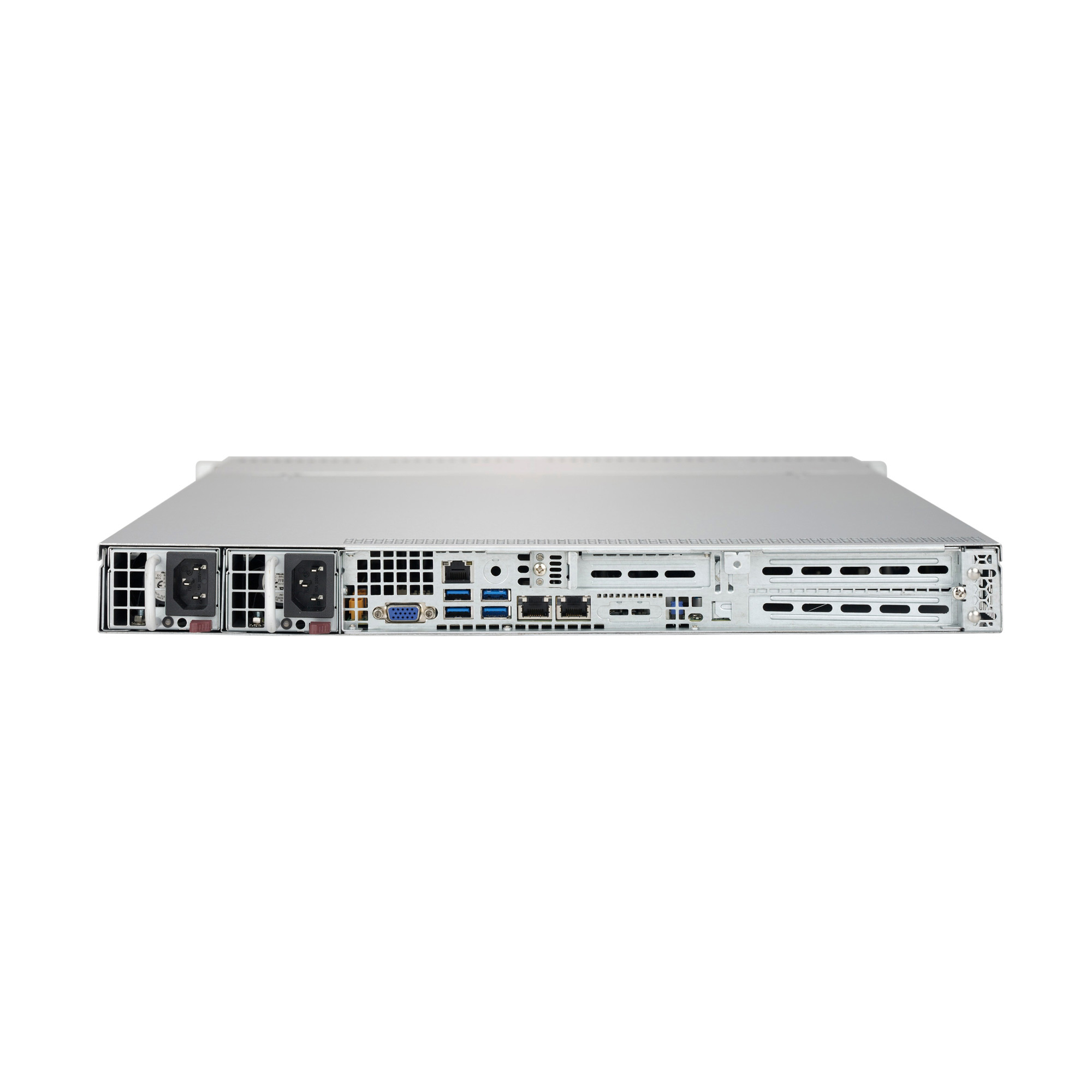

Input / Output

SATA	4 SATA3 (6 Gbps) ports
LAN	2 RJ45 Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port
USB	4 USB 3.0 ports (rear)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED


Expansion Slots

PCI-Express	2 PCI-E 3.0 x16 (FHHL) slots 1 PCI-E 3.0 x8 (LP) slot 1 PCI-E 3.0 x16 for Add-on-Module (AOM) 1 PCI-E 3.0 x4 NVMe M.2 slot (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Backplane

SAS/SATA HDD Backplane


AC/DC240V Input Redundant Power Supply

700W/750W Redundant Power Supplies with PMBus
Total Output Power	700W/750W
Dimension (W x H x L)	54.5 x 40.25 x 320 mm
Input	100 – 140Vac / 8 – 6A / 50-60Hz 200 – 240Vac / 4.5 – 3.8A / 50-60Hz 200 – 240Vdc / 4.5 – 3.8A (CCC Only)
+12V	Max: 58A / Min: 0.5A (100 – 140Vac) Max: 62A / Min: 0.5A (200 – 240Vac) Max: 62A / Min: 0.5A (200 – 240Vdc) (CB/CCC Only)
+5V sb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Certification	Platinum Certified [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
