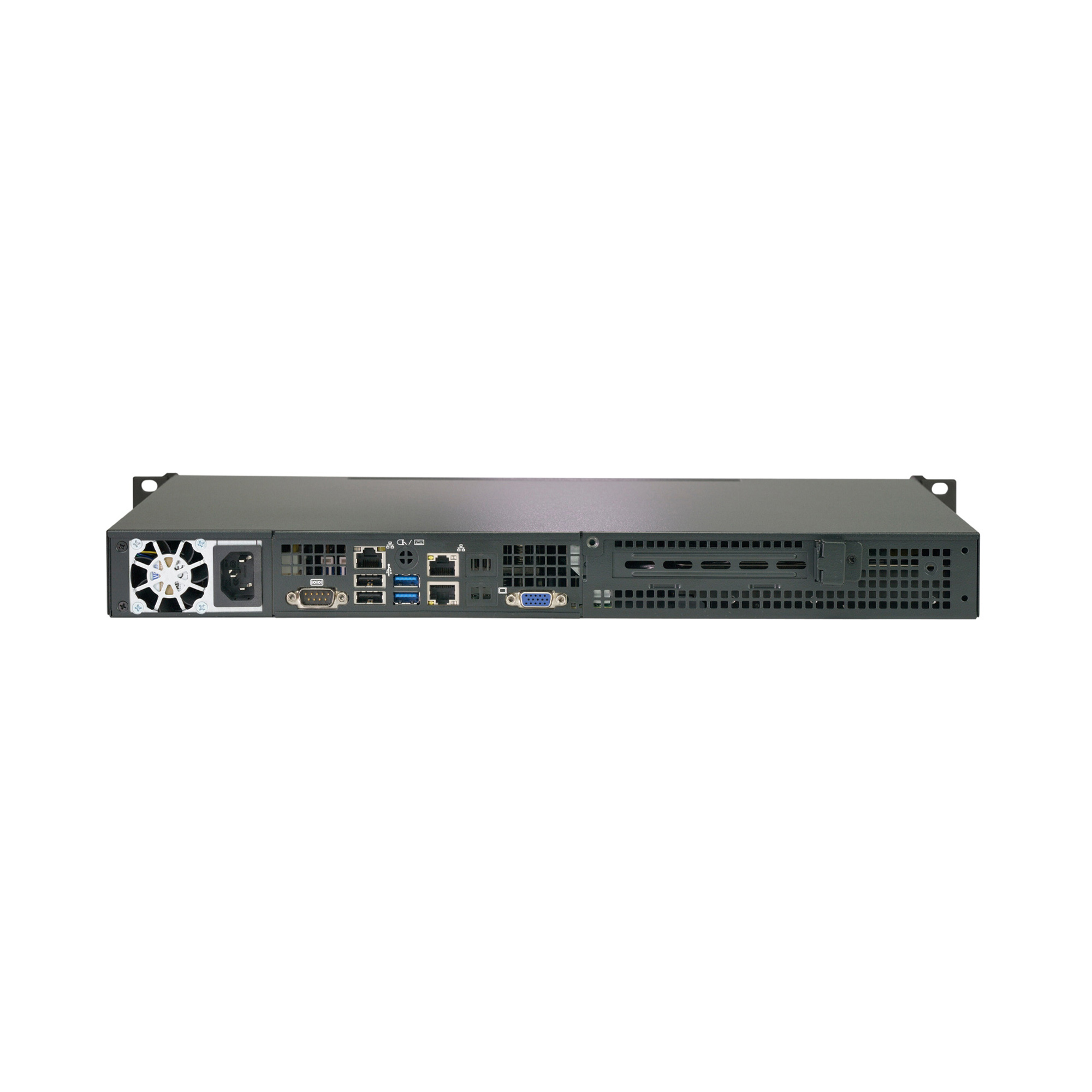

Name: Supermicro SYS-5019C-L Mini 1U Mainstream
SKU: 4829

Description

Key Features

Single Socket H4 (LGA 1151) supports
Intel® Xeon® processor E-2100 /
E-2200 series, 8th/9th Gen.
Intel® Core™ i3 Processors,
Intel® Celeron®, Intel® Pentium®
Intel® C242 chipset
Up to 64GB ECC UDIMM, up to
DDR4-2666MHz; 2 DIMM slots
1 PCI-E 3.0 x16 slot
1 Fixed 3.5″ drive support (default);
up to 2 Fixed 3.5″ drives or 4 Fixed 2.5″ drives (opt.)
2 Interface:
1 SATA/PCI-E 3.0 x4
M.2 Form Factor:2280
M.2 Key: M-Key
2 GbE LAN ports, 1 dedicated IPMI LAN
2 USB 3.1 (rear), 2 USB 2.0 (rear)
1 VGA, 1 COM, 1 TPM
200W Multi-output power supply,Gold Level Certified

Specifications

Motherboard

Super X11SCL-iF


Processor

CPU	Single Socket H4 (LGA 1151), CPU TDP support up to 95WSupport Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores	6 cores, 12 threads
Note	BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series


System Memory

Memory Capacity	2 DIMM slots Up to 64GB Unbuffered ECC UDIMM Up to DDR4-2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes	32GB, 16GB, 8GB, 4GB


On-Board Devices

Chipset	Intel® C242 chipset
SATA	SATA3 (6Gbps) via Intel C242 controller RAID 0, 1, 5, 10 support
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with Intel® I210-AT
Video	ASPEED AST2500 BMC


Input / Output

SATA	4 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.1 ports (rear) 2 USB 2.0 ports (rear)
Video	1 VGA port
Serial Port / Header	1 COM port (rear)
TPM	1 TPM 2.0 Header


System BIOS

BIOS Type	UEFI 256Mb
BIOS Features	ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0


Management

Software	Intel® Node Manager IPMI 2.0 NMI SSM, SPM, SUM Watch Dog SuperDoctor® 5


Dimensions and Weight

Height	1.7″ (43mm)
Width	17.2″ (437mm)
Depth	9.8″ (249mm)
Package	6.1″ (H) x 25.8″ (W) x 18.3″ (D)
Weight	Gross Weight: 12 lbs (5.44 kg) Net Weight: 8 lbs (3.63 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Information LED


Expansion Slots

PCI-Express	1 PCI-E 3.0 x16 slot
M.2	M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key


Drive Bays

Internal	2 Fixed 3.5″ drive bay or 4 Fixed 2.5″ drive bays


Power Supply

200W Low Noise AC-DC power supply with PFC
AC Voltage	100 – 240V, 50-60Hz, 2.6 Amp Max
+5V	8.0 Amp (max.)
+5V standby	2.0 Amp (max.)
+12V	16 Amp (max.)
-12V	0.5 Amp (max.)
+3.3V	8.0 Amp (max.)
Certification	Gold Certified


PC Health Monitoring

CPU	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature	Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
