Supermicro SYS-2029P-C1R 2U Rackmount Mainstream

Categories: , ,

Description

Key Features

  • Dual Socket P (LGA 3647) support2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)    ‡
  • 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz    †RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM    ††
  • 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots,
    support 5 low-profile AOCs
  • 8x 2.5″ SAS3 & 8x 2.5″ SATA3 Hot-swap
    Drive Bays, optional DVD-ROM drive,
    optional support 2 NVMe/SSD/HDD 2.5″ fix drives, 1 M.2 support
  • 2 Interface:PCI-E 3.0 x4
    M.2 Form Factor: 2260, 2280, 22110
    M.2 Key: M-Key
  • 2x 1GbE LAN ports with Intel® X722
  • Integrated IPMI 2.0 with KVM andDedicated LAN
  • 2 SuperDOM, 1 VGA, 2 COM,
    2 USB 3.0, 4 USB 2.0, 1 Type A
  • 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control
  • 1200W Redundant Power Supplies Titanium Level(96%)



Specifications

Product SKUs
SYS-2029P-C1R SuperServer 2029P-C1R (Black)




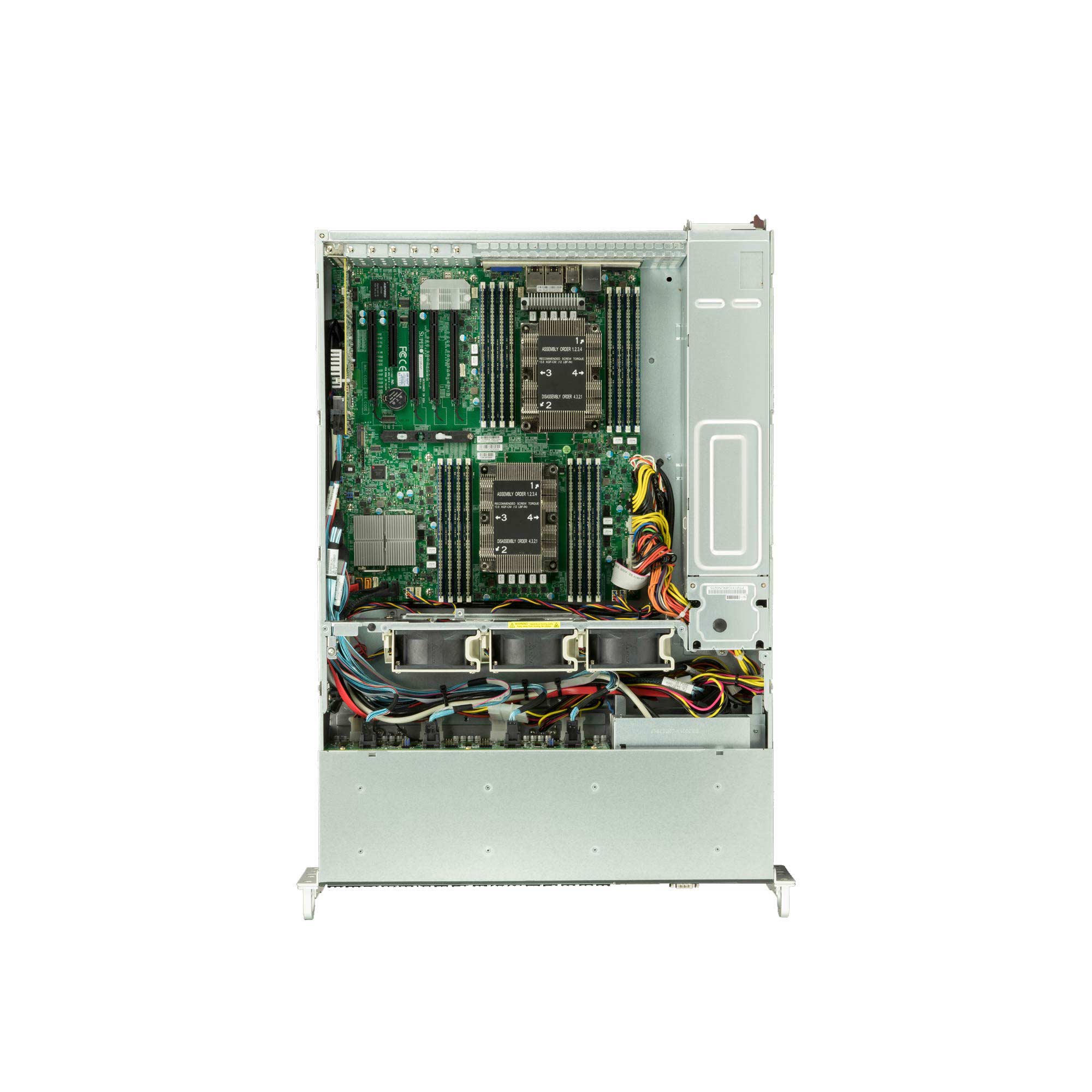

Motherboard

Super X11DPi-N




Processor
CPU Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
Dual UPI up to 10.4GT/s

Support CPU TDP 70-205W
Cores Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
* CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W




System Memory
Memory Capacity 16 DIMM slots

Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM††
Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.




On-Board Devices
Chipset Intel® C621 chipset
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS Broadcom 3108 SAS3 (12Gbps) controller;
HW RAID 0, 1, 5, 6, 10, 50, 60
Network Controllers Dual 1GbE LAN with Intel® X722
IPMI Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC




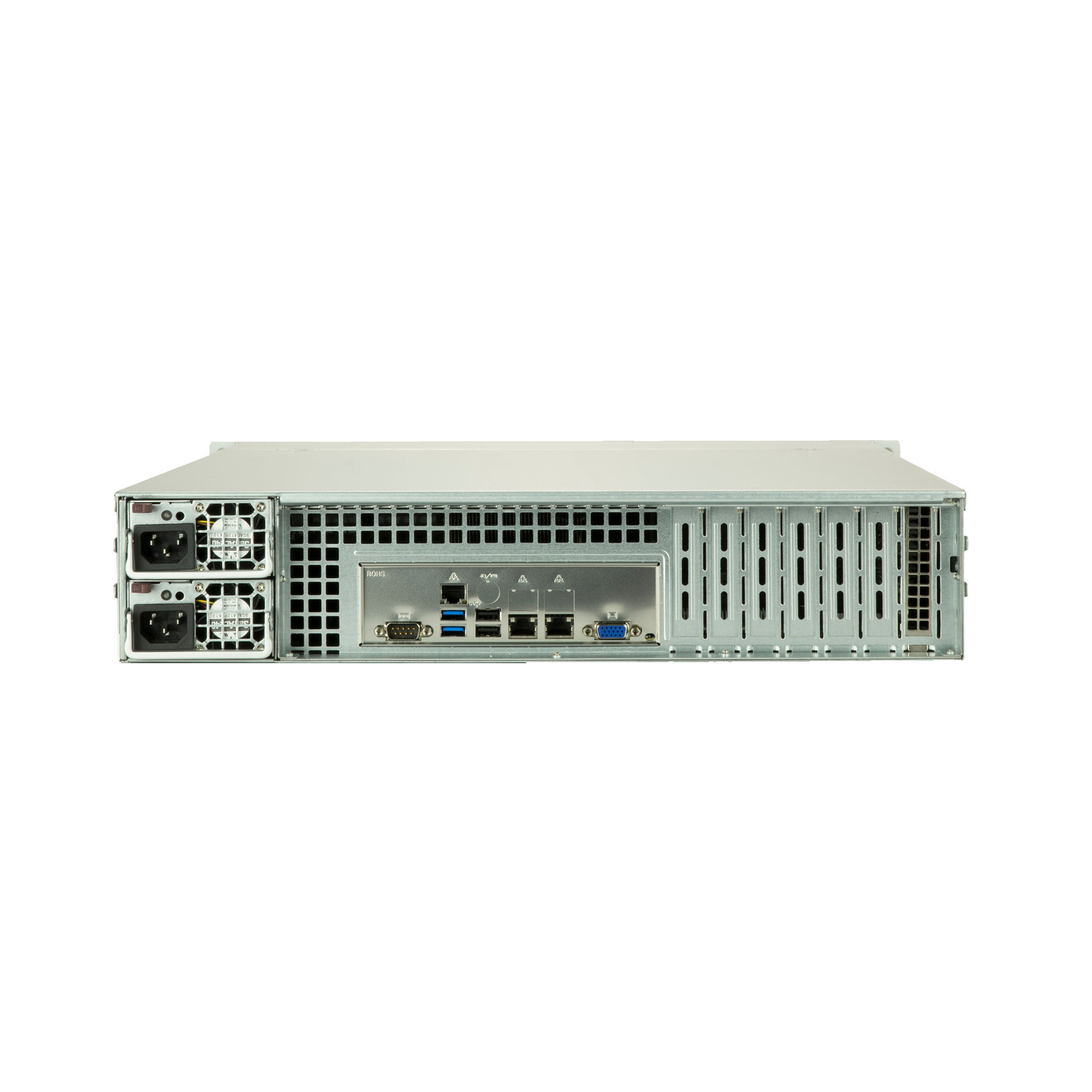

Input / Output
SATA 8 SATA3 (6Gbps) ports
SAS 8 SAS3 (12Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports

1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (2 rear)

4 USB 2.0 ports (2 rear, 2 front)

1 USB Type A
Video 1 VGA Connector
Serial Port / Header 2 Fast UART 16550 serial

2 COM Ports (1 rear, 1 front)




System BIOS
BIOS Type AMI UEFI




Management
Software Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

NMI

SSM, SPM, SUM

SuperDoctor® 5

Watchdog
Power Configurations ACPI Power Management




PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator
FAN Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment

Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-213AC-R1K23LPB




Dimensions and Weight
Height 3.5″ (89mm)
Width 17.2″ (437mm)
Depth 24.8″ (630mm)
Package 11″ (H) x 29″ (W) x 38.7″ (D)
Weight Net Weight: 38 lbs (17.4 kg)

Gross Weight: 63 lbs (28.8 kg)
Available Color Black




Front Panel
Buttons Power On/Off button

System Reset button
LEDs Power LED

Hard drive activity LED

Network activity LEDs

System Overheat LED / Fan fail LED /
UID LED




Expansion Slots
PCI-Express 4 PCI-E 3.0 x16 slots

1 PCI-E 3.0 x8 slot

Support total of 5 Low-profile AOC




Drive Bays
Hot-swap 8x 2.5″ SAS3 and 8x 2.5″ SATA3 Hot-swap drive bays
Peripheral Optional DVD-ROM drive supports 1x slim or 1x 5.25″ DVD drive
Optional Optional 2 NVMe/SSD/HDD 2.5″ fix drives

1 M.2 support




System Cooling
Fans 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control




Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power 1000W/1200W
Dimension
(W x H x L)		 76 x 40 x 336 mm
Input 100-127Vac / 15-12A / 50-60Hz

200-240Vac / 8.5-7A / 50-60Hz

200-240Vdc / 8.5-7A (for CCC only)
+12V Max: 83A / Min: 0A (100-127Vac)

Max: 100A / Min: 0A (200-240Vac)

Max: 100A / Min: 0A (200-240Vdc)
+5Vsb Max: 4A / Min: 0A
Output Type 19 Pairs Gold Finger Connector
Certification Titanium Level
[ Test Report ]




Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:
8% to 90% (non-condensing)

Non-operating Relative Humidity:
5% to 95% (non-condensing)
