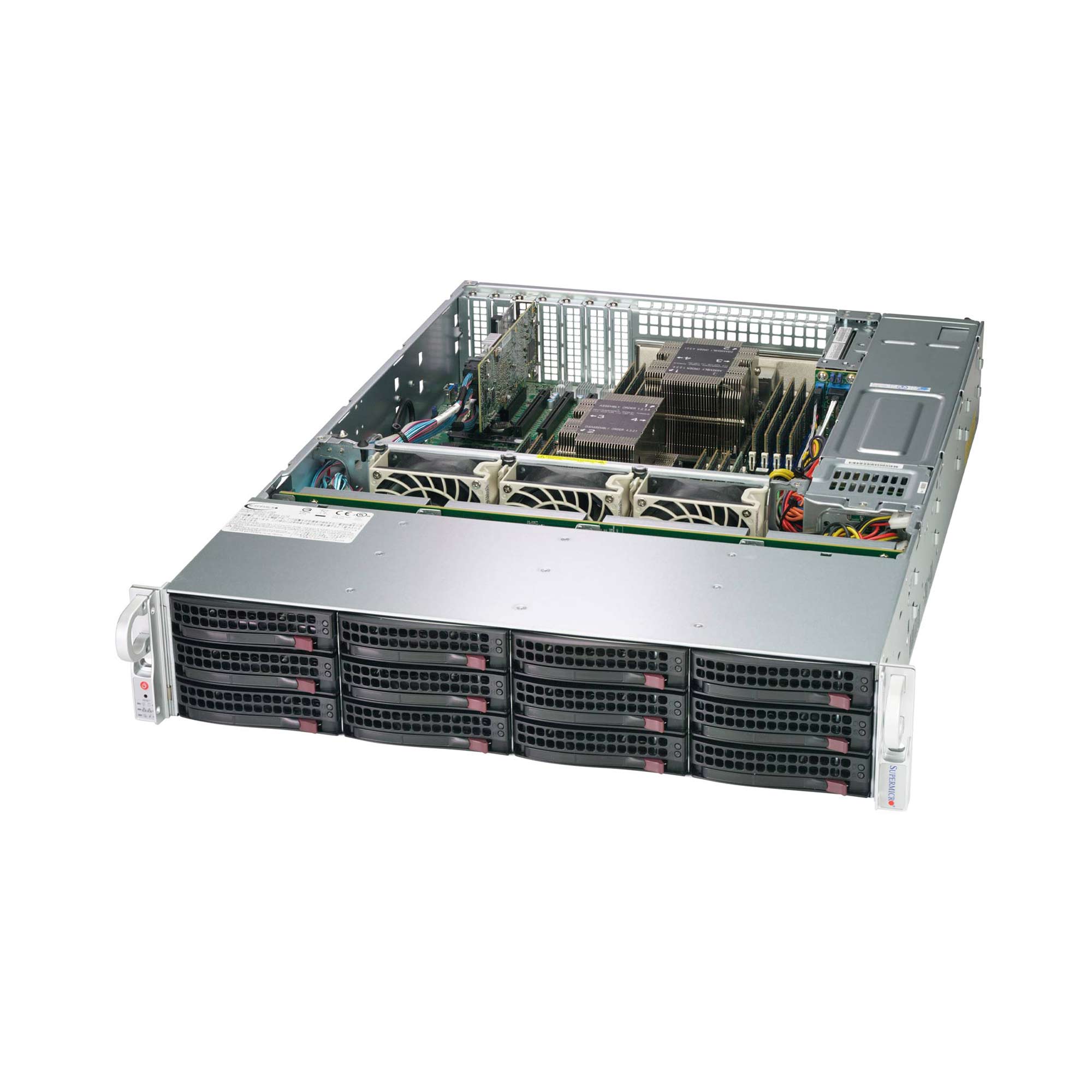

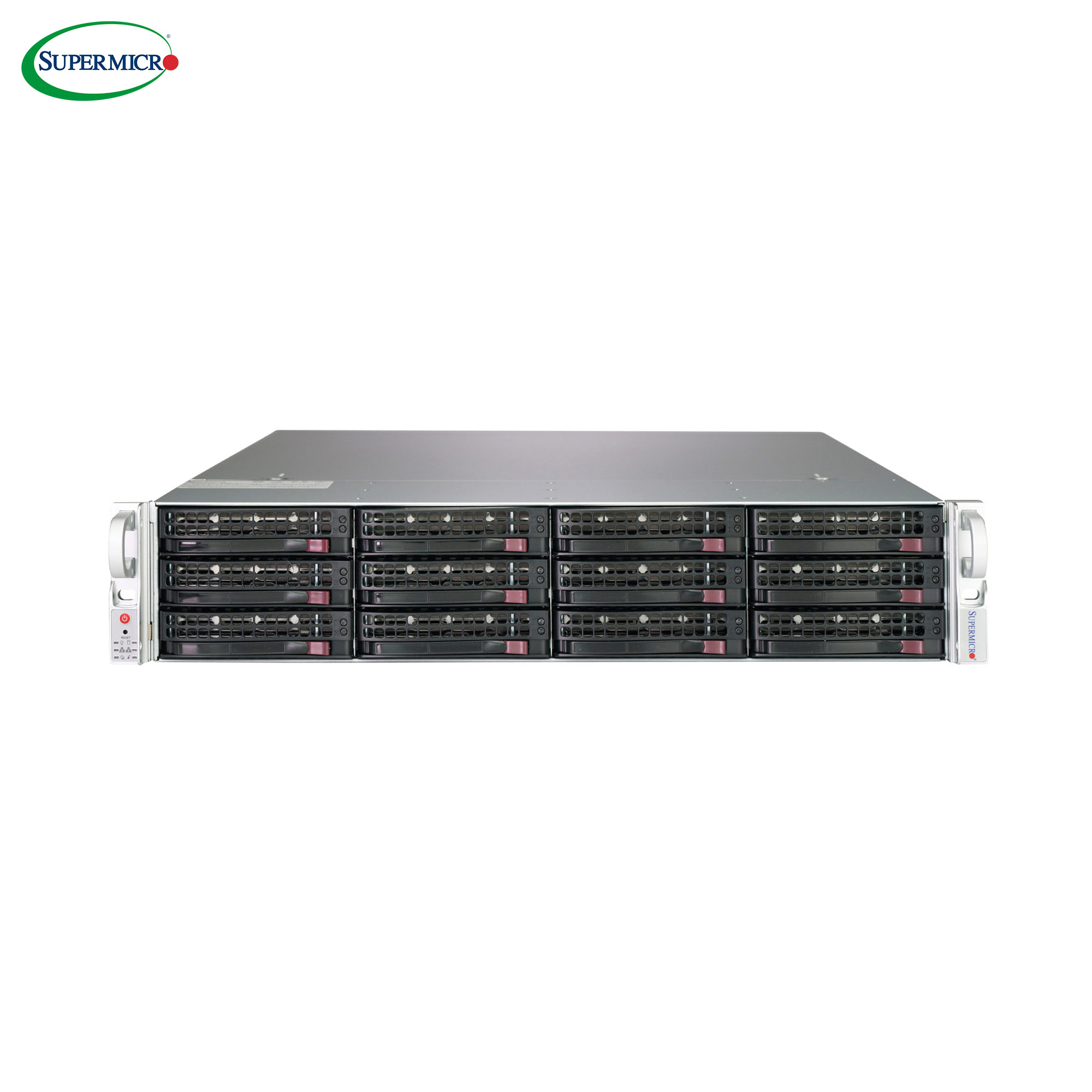

Name: Supermicro SSG-6029P-E1CR12H 2U 12-Bays
SKU: 4700

Description

Key Features

Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡
16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz^†RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM^††
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
12 Hot-swap 3.5″ SAS3/SATA3 drive bays including 4 optional NVMe drives; 2 hot-swap 2.5″ SATA3 drive bays (rear), 2 M.2 NVMe, Expander based backplane
Broadcom 3108 SAS3 AOC
2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
3 Hot-swap 8cm redundant PWM fans
1200W Redundant Power Supplies Titanium Level (96%)

Specifications

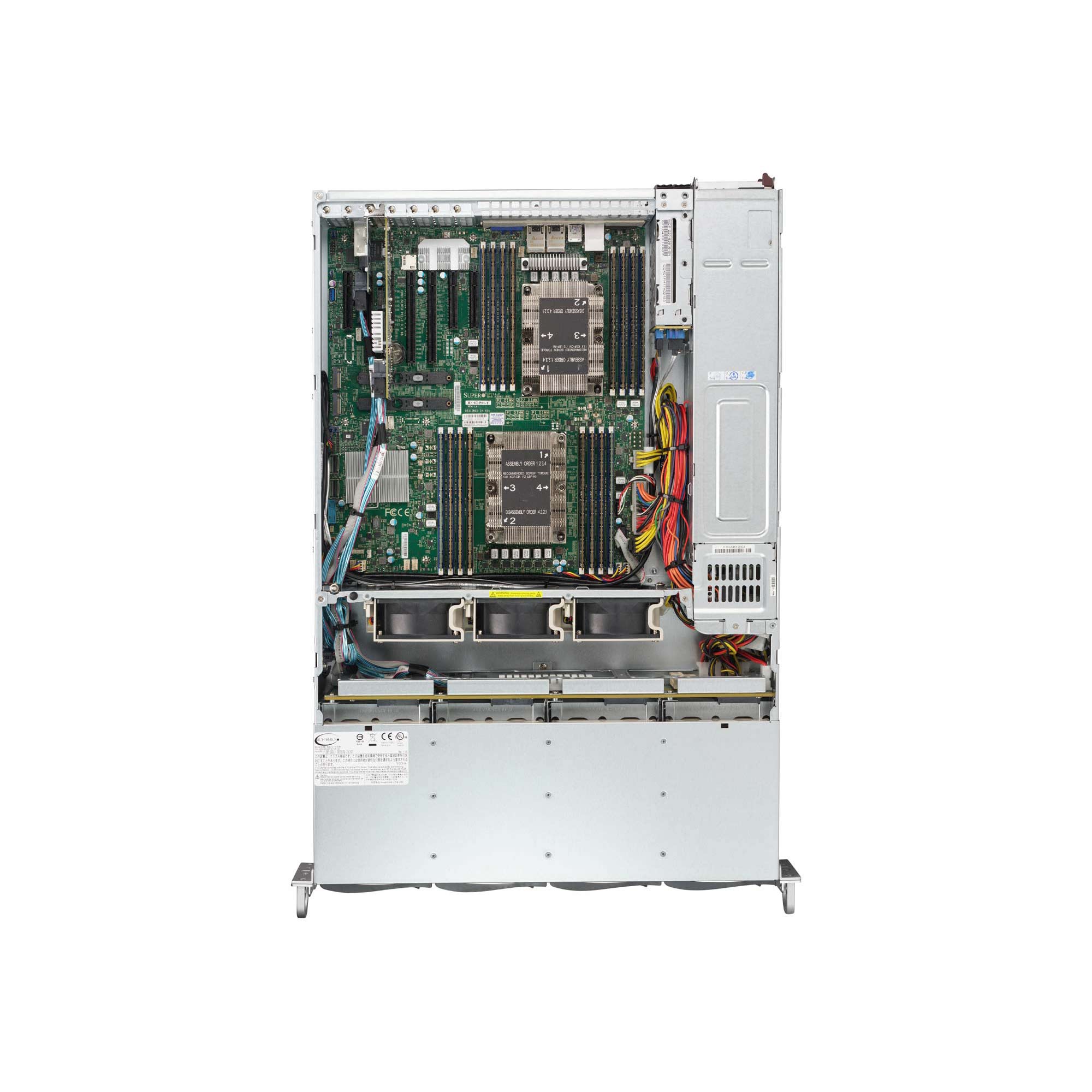

Motherboard

Super X11DPH-T


Processor

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM††
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C622 chipset
SAS	SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID RAID 0, 1, 5, 6, 10, 50, 60
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC

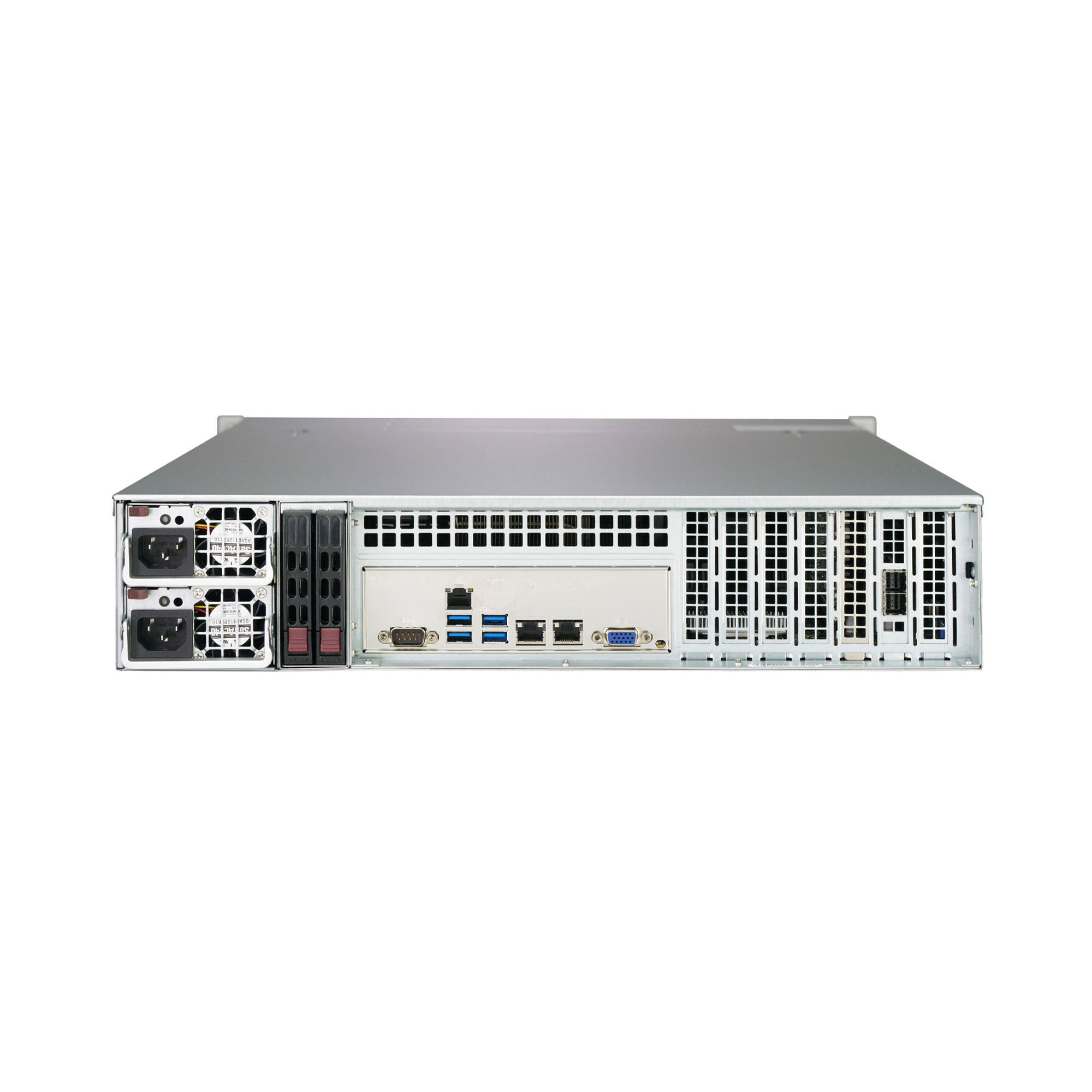

Input / Output

LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	4 USB 3.0 ports (rear) 1 Type A
Video	1 VGA port
Serial Port / Header	1 Fast UART 16550 port / 1 Header


Management

Software	Intel® Node Manager IPMI 2.0 NMI SPM, SUM SuperDoctor® 5 Watchdog


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power status LED Hard drive activity LED Network activity LEDs System Information LED Power fail LED


Expansion Slots

PCI-Express	3 PCI-E 3.0 x16 slot 4 PCI-E 3.0 x8 slots Slot 2 & 3 occupied by controller and JBOD expansion port


Drive Bays

Hot-swap	12 Hot-swap 3.5″ SAS3/SATA3 drive bays 2 Hot-swap 2.5″ SATA3 drive bays (rear)
Optional	4 U.2 NVMe 2 M.2 NVMe

Backplane

SAS3 12Gb/s expander storage backplane, w/ 12x SAS3 3.5″ drive slots


System Cooling

Fans	3 Hot-swap 8cm redundant PWM cooling fans


Power Supply (76mm Width)

1200W Redundant Power Supplies with PMBus
Total Output Power	1000W/1200W
Dimension (W x H x L)	76 x 40 x 336 mm
Input	100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only)
+12V	Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc)
+5Vsb	Max: 4A / Min: 0A
Output Type	19 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
