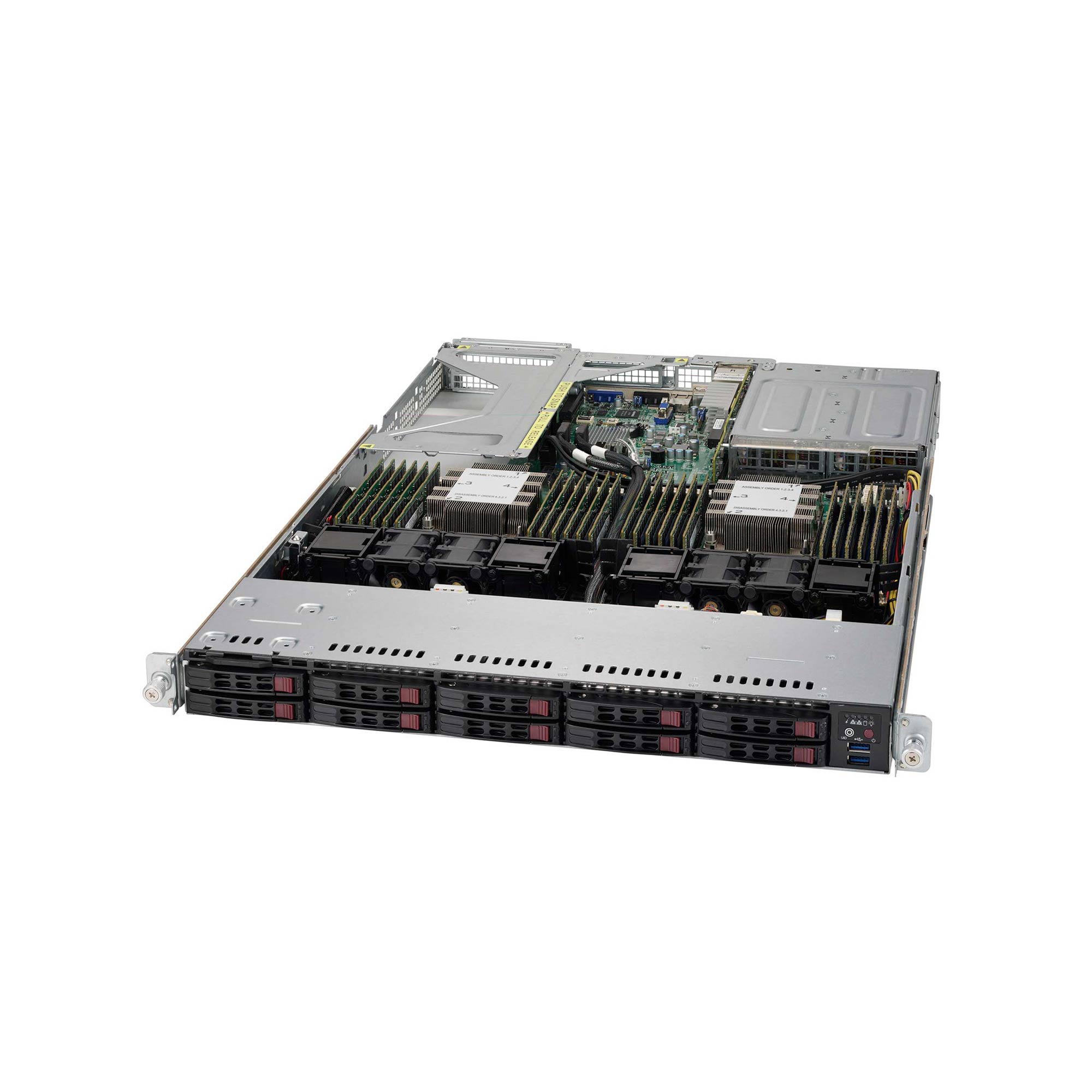

Supermicro SYS-1029U-TR4 1U Rackmount Ultra

Key Applications

Virtualization
Cloud Computing
High End Enterprise Server

Categories: , ,

Description

Key Features

  • Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
  • 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz†RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
  • 2 PCI-E 3.0 x16 slots (FH, 10.5″ L),
    2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 4 Gigabit Ethernet ports
  • 0 Hot-swap 2.5″ Drive Bays;
  • 10 SATA3 (2 hybrid ports – 2 NVMe opt.);
    Optional M.2 NVMe and SATA3 ports
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Power Supplies Platinum Level (94%+)



Specifications

Product SKUs
SYS-1029U-TR4 ·        SuperServer 1029U-TR4 (Black)




Motherboard
Super X11DPU




Processor
CPU ·        Dual Socket P (LGA 3647)

·        2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
Dual UPI up to 10.4GT/s

·        Support CPU TDP 70-205W
Cores ·        Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.




System Memory
Memory Capacity ·        24 DIMM slots

·        Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

·        Supports Intel® Optane™ DCPMM††
Memory Type ·        2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

·        2666 ECC DDR4 NVDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.




On-Board Devices
Chipset ·        Intel® C621 chipset
SATA ·        SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity ·        4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)
IPMI ·        Support for Intelligent Platform Management Interface v.2.0

·        IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ·        ASPEED AST2500 BMC




Input / Output
SATA ·        10 SATA3 (6Gbps) ports
SAS ·        8 SAS3 ports support via optional Add-on Card

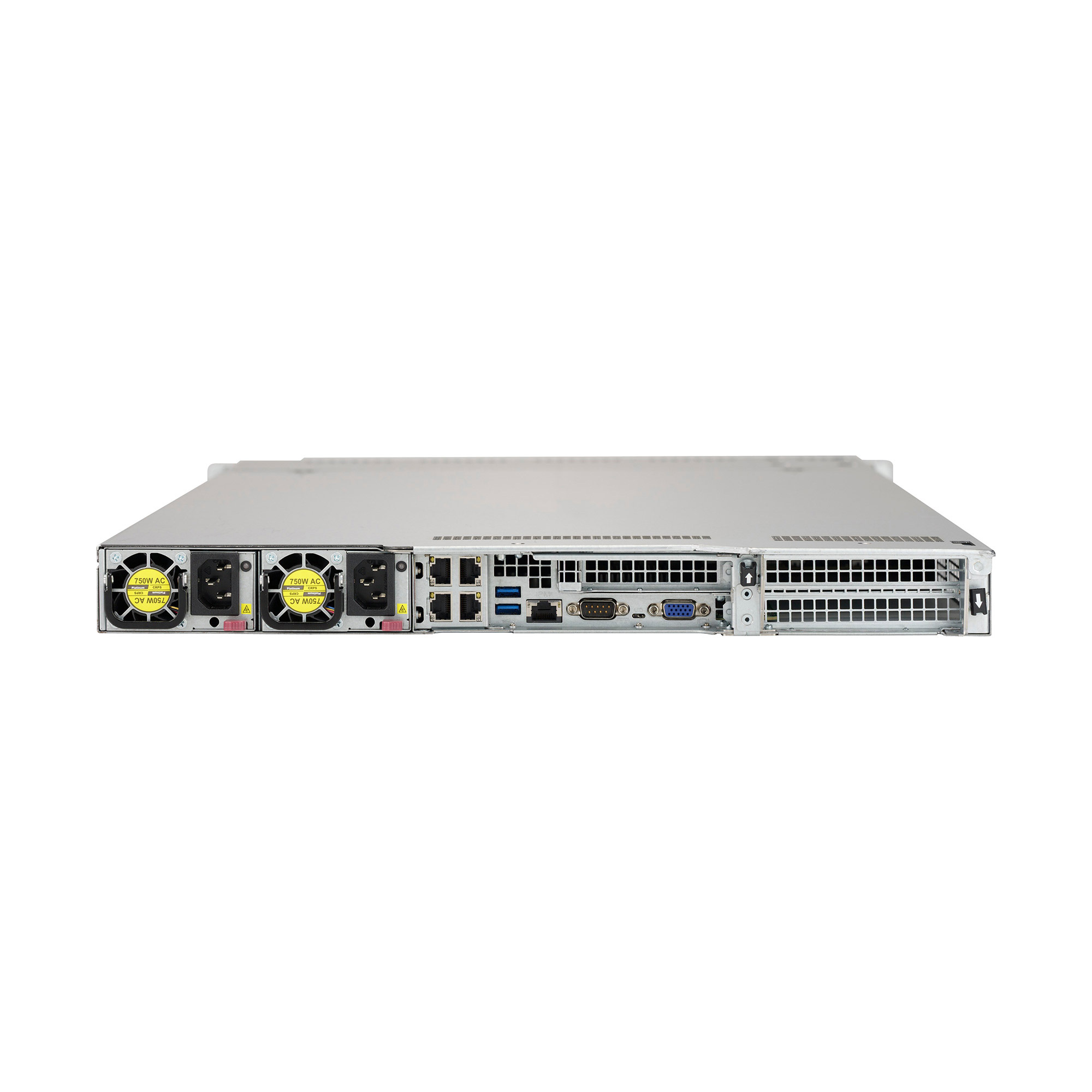

LAN ·        4 RJ45 Gigabit Ethernet ports

·        1 RJ45 Dedicated IPMI LAN port
USB ·        5 USB 3.0 ports
(2 rear, 2 front, 1 Type A)
Video ·        2 VGA ports (1 rear, 1 onboard)
Serial Port ·        1 Serial header




System BIOS
BIOS Type ·        AMI 32Mb SPI Flash ROM




Management
Software ·        Intel® Node Manager

·        IPMI 2.0

·        KVM with dedicated LAN

·        NMI

·        SSM, SPM, SUM

·        SuperDoctor® 5
Power Configurations ·        ACPI Power Management




PC Health Monitoring
CPU ·        Monitors for CPU Cores, Chipset Voltages, Memory.

·        4+1 Phase-switching voltage regulator
FAN ·        Fans with tachometer monitoring

·        Status monitor for speed control

·        Pulse Width Modulated (PWM) fan connectors
Temperature ·        Monitoring for CPU and chassis environment

·        Thermal Control for fan connectors
Chassis
Form Factor ·        1U Rackmount
Model ·        CSE-119UTS-R751P-T




Dimensions and Weight
Height ·        1.7″ (43mm)
Width ·        17.2″ (437mm)
Depth ·        28.5″ (724mm)
Weight ·        Net Weight: 26 lbs (11.8 kg)

·        Gross Weight: 41 lbs (18.6 kg)
Available Color ·        Black

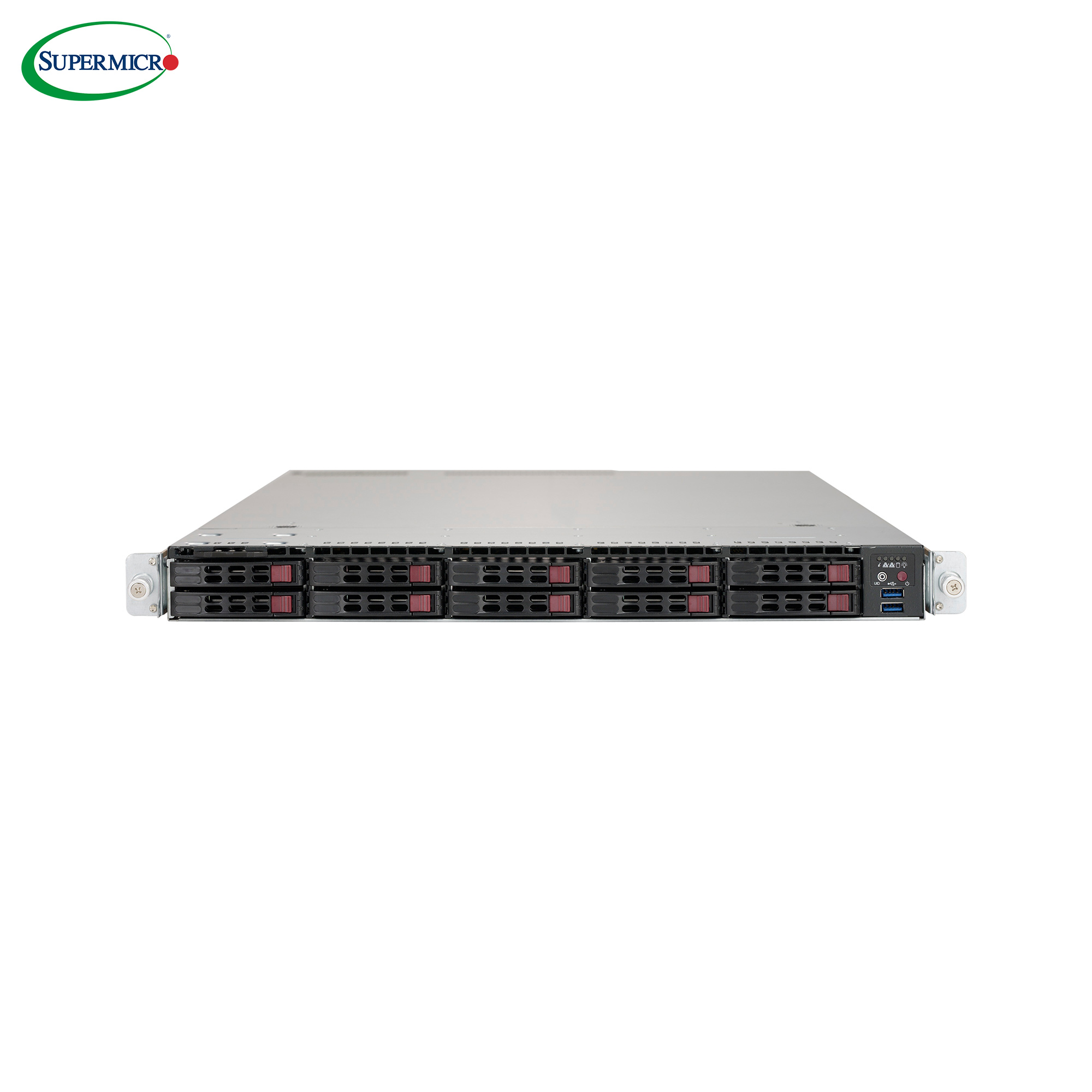

Front Panel
Buttons ·        Power On/Off button

·        System Reset button
LEDs ·        Power LED

·        Hard drive activity LED

·        Network activity LEDs

·        System Overheat LED / Fan fail LED /
UID LED




Expansion Slots
PCI-Express ·        2 PCI-E 3.0 x16 (Full-height, 10.5″ L)

·        2 PCI-E 3.0 x8 (1 LP, 1 internal LP)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)




Drive Bays / Storage
Hot-swap ·        10 Hot-swap 2.5″ drive bays; 10 SATA3 (2 hybrid ports – 2 NVMe opt.)
M.2 ·        1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)

·        2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2




System Cooling
Fans ·        8 heavy duty fans with optimal fan speed control
Air Shroud ·        1 Air Shroud




Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input ·        100-127Vac, 50-60Hz

·        200-240Vac, 50-60Hz
+12V ·        Max: 62.5A & Min: 0A (100Vac-127Vac)

·        Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB ·        Max: 2.1A

·        Min: 0A
Certification   Platinum Level

  [ Test Report ]




Operating Environment
RoHS ·        RoHS Compliant
Environmental Spec. ·        Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)

·        Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)

·        Operating Relative Humidity:
   8% to 90% (non-condensing)

·        Non-operating Relative Humidity:
   5% to 95% (non-condensing)
