Name: Supermicro SYS-1029GP-TR 1U Rackmount DP
SKU: 4813

Description

Key Features

Supports 3x double width GPU
or 4 single width GPUs;
Support for passively cooled GPUs
Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)^‡
16 DIMMs; up to 4TB 3DS ECC
DDR4-2933MHz^†RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM^††
4 PCI-E 3.0 x16 (FHFL) slots,
1 PCI-E 3.0 x8 (in x16, LP) slots
2 Hot-swap 2.5″ SAS/SATA drive bays,
2 Hot-swap 2.5″ SATA/NVMe drive bays
1 SIOMfor flexible Networking
10 Counter rotating fans with optimal fan speed control
1600W Redundant Power Supplies Platinum Level (94%)

Specifications

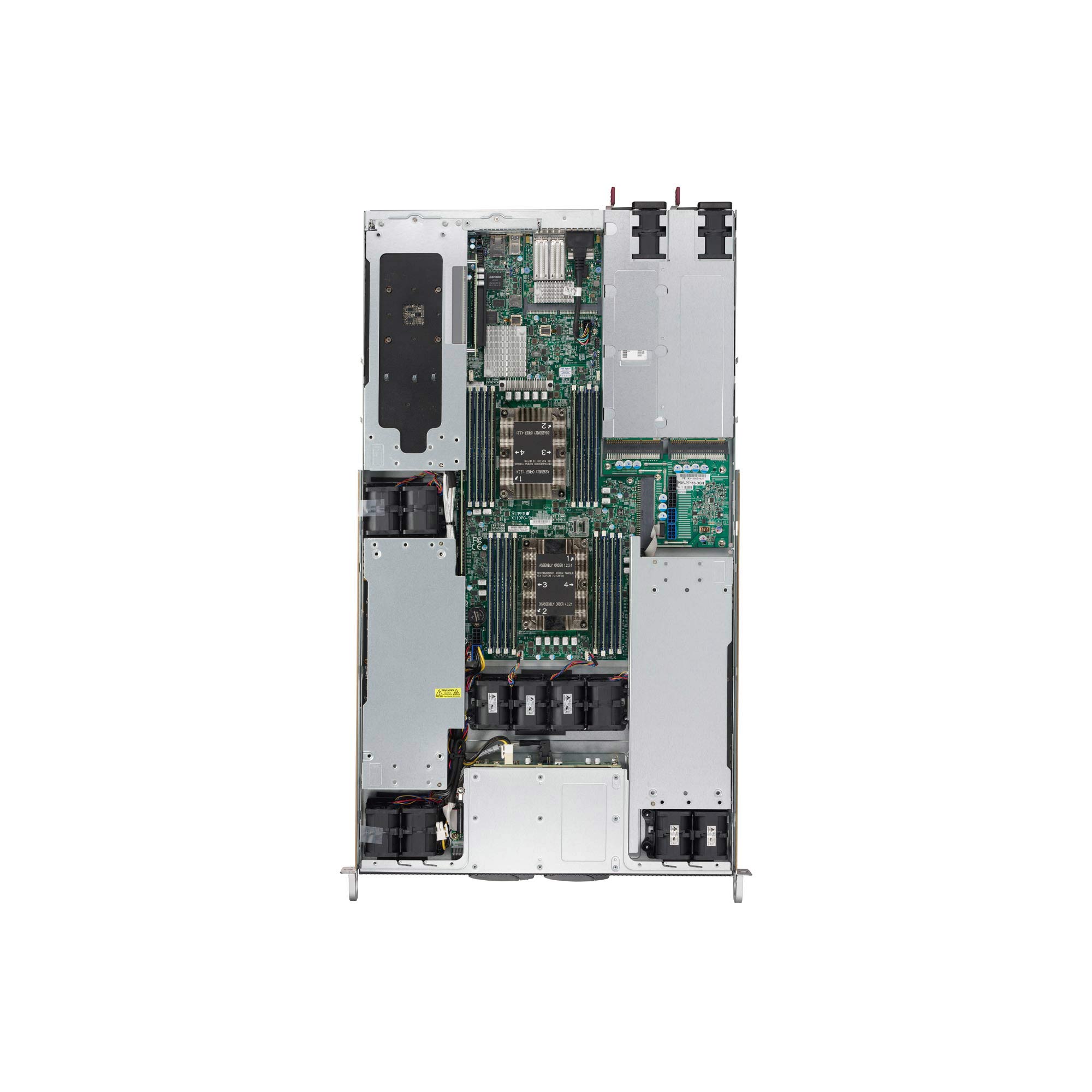

Motherboard

Super X11DPG-SN


Processor

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-165W*
Cores	Up to 28 Cores
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


GPU

Supported GPUs	3 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) 4 Single-Width GPUs NVIDIA V100, M10, T4, Quadro RTX Compatible GPU list
CPU-GPU Interconnect	PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root


System Memory

Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM††
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions and Weight

Height	1.7″ (43mm)
Width	17.2″ (437mm)
Depth	30.6″ (777mm)
Weight	Net Weight: 45 lbs (15.9 kg) Gross Weight: 58 lbs (21.8 kg)
Available Color	Black

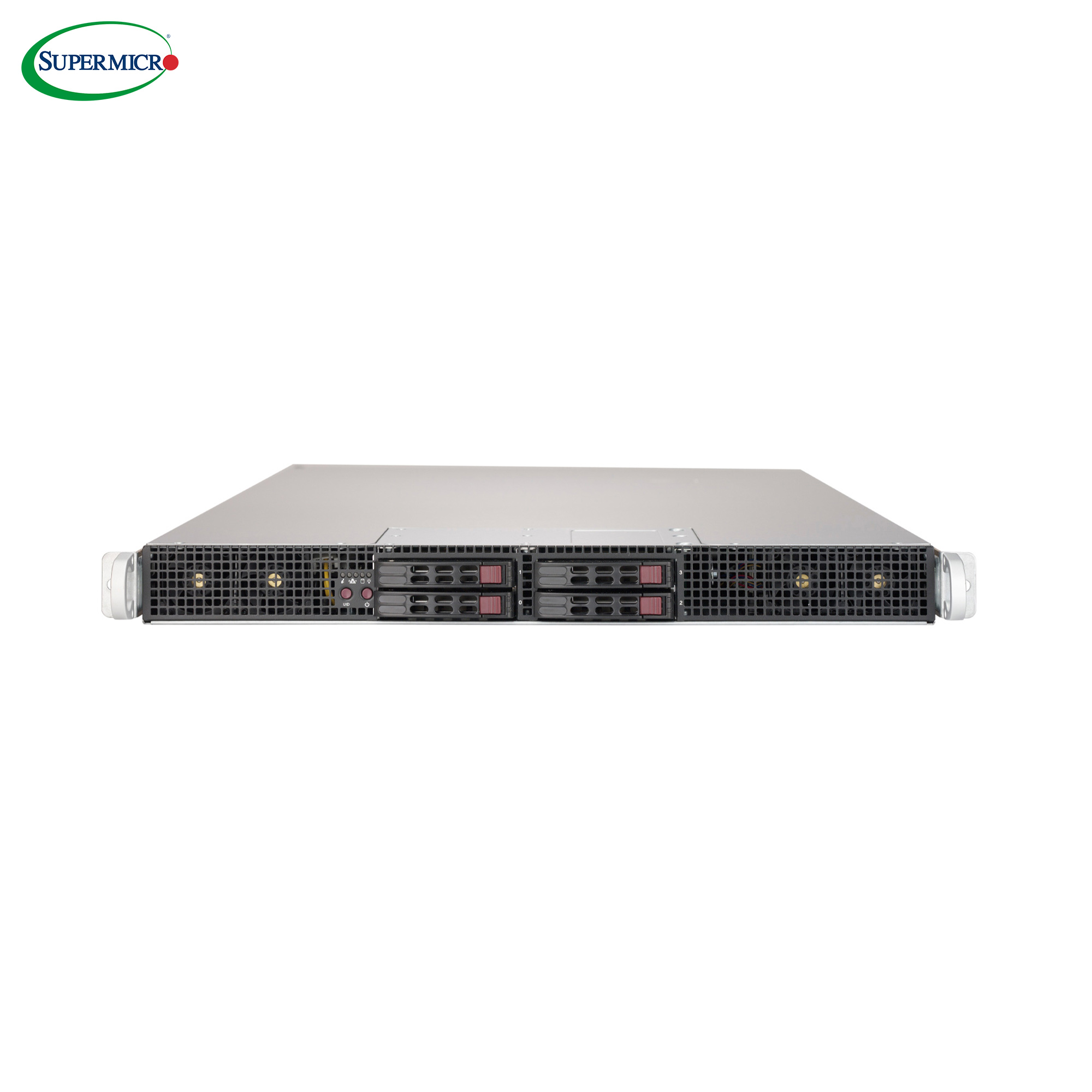

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED / UID LED


Expansion Slots

PCI-Express	4 PCI-E 3.0 x16 (FHFL) slots – supporting up to 4 GPUs 1 PCI-E 3.0 x8 (in x16, LP) slot



System Cooling

Fans	10 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control


Power Supply

1600W 1U Redundant Power Supplies with PMBus
Total Output Power	1000W: 100 – 127Vac 1600W: 200 – 240Vac
Dimension (W x H x L)	73.5 x 40 x 265 mm
Input	100-127Vac / 12.9A Max / 50-60Hz 200-240Vac / 9.5A Max / 50-60Hz
+12V	Max: 82A / Min: 0.1A (100-127Vac) Max: 132A / Min: 0.1A (200-240Vac)
12V SB	Max: 2A / Min: 0.2A
Output Type	25 Pairs Gold Finger Connector
Certification	Platinum Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
