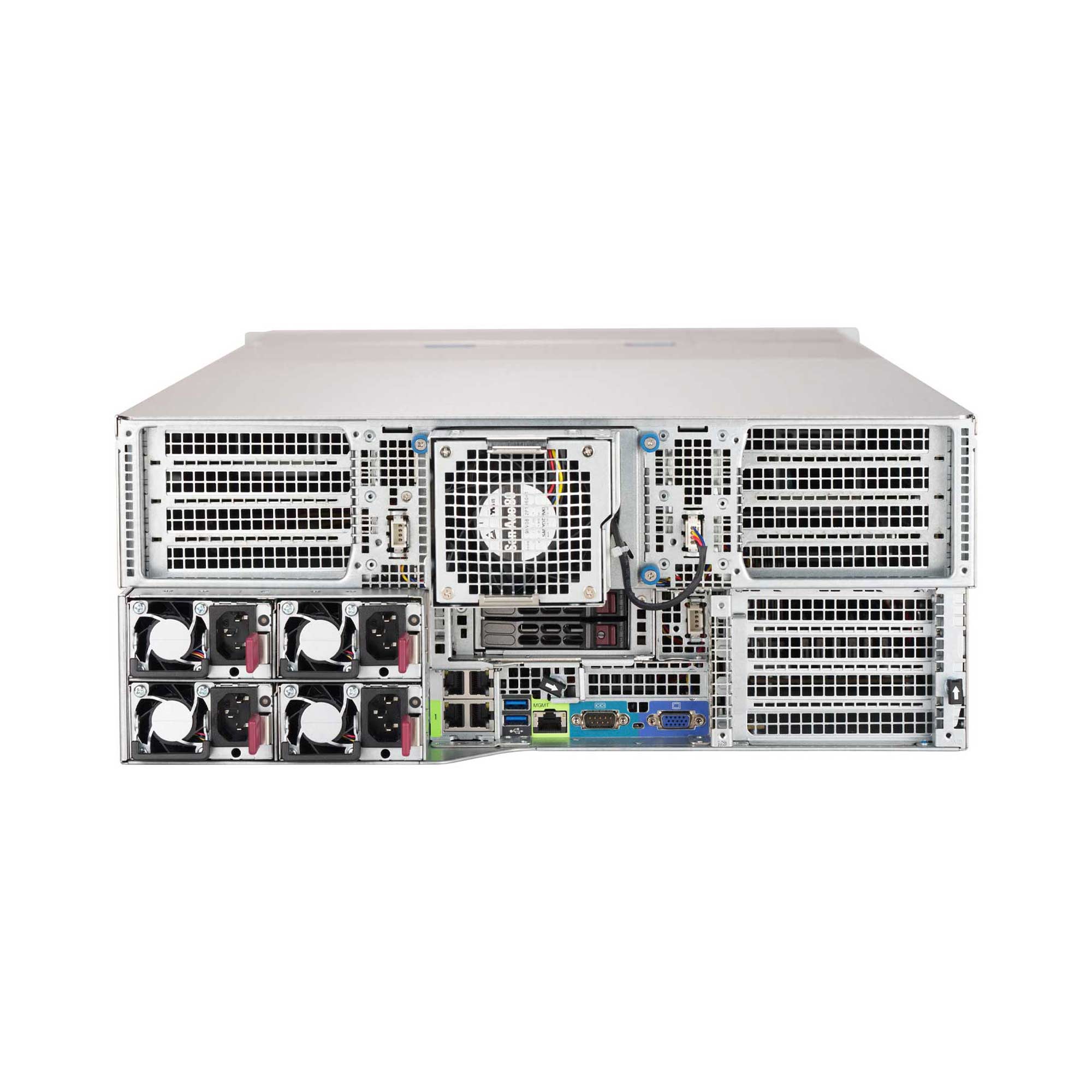

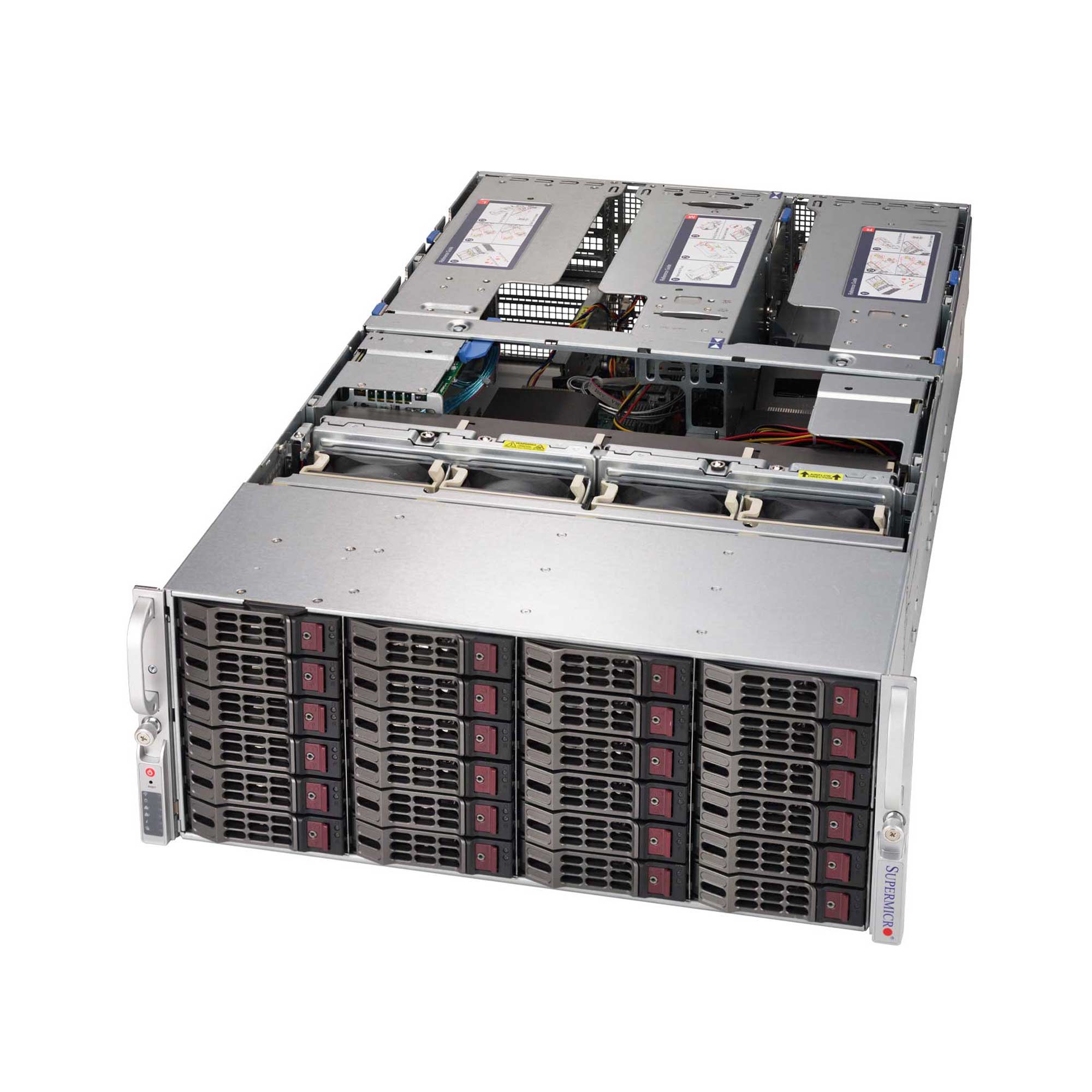

Name: Supermicro SYS-8049U-E1CR4T 4U Rackmount-Ultra
SKU: 4690

Description

Key Features

Quad Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡
48 DIMMs; up to 12TB 3DS ECC DDR4-2933MHz^†RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM^††
6 PCI-E 3.0 x16 slots, 10 PCI-E 3.0 x8 slots Up to 6 double width passive GPUs
4x 10GBase-T LAN ports via AOC-4UR66-I4XTF-P
24 Hot-swap 3.5″ SAS3/SATA3 drive bays supported via optional Add-on
RAID controller card; 8 Hybrid ports with NVMe support via optional AOC 6. 8x 9cm heavy duty fans
1600W (3+1) Redundant Power Supplies, Platinum Level (96%)

Specifications

Motherboard

Super X11QPH+


Processor/Cache

CPU	Quad Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores
Note	‡ BIOS version 3.0a or above is required to support 2nd Gen Intel® Xeon® Scalable processors


System Memory

Memory Capacity	48 DIMM slots Up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM††
Memory Type	2933†/2666MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (SSD only) via Intel C621; RAID 0, 1
Network Connectivity	4x 10GBase-T LAN ports via AOC-4UR66-I4XTF-P; Other options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC


Input / Output

SATA	2 SATA3 (SSD only) (6Gbps) ports at rear
SAS	24 SAS3 ports support via optional Add-on Cards
NVMe	8 Hybrid ports with NVMe support via AOC
LAN	4x 10GBase-T RJ45 LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
Video	1 VGA Connector
Serial Port / Header	1 COM port (rear)
DOM	2 SuperDOM (Disk on Module) ports


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS


Management

Software	SuperDoctor® 5 Watch Dog NMI SUM IPMI 2.0
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions and Weight

Width	17.2″ (437mm)
Height	6.9″ (177mm)
Depth	34.5″ (876mm)
Weight	Net Weight: 74.5 lbs (33.79 kg) Gross Weight: 115 lbs (52.16 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED


Expansion Slots

PCI-Express	6 PCI-E 3.0 x16 slots 10 PCI-E 3.0 x8 slots (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers. See AOC Support for details.)


Drive Bays

Hot-swap	24 Hot-swap 3.5″ SAS3/SATA3 drive bays Optional 24 SAS3 ports via AOC Optional 16 SAS3 ports via AOC + 8 NVMe ports via AOC


System Cooling

Fans	8x 9cm heavy duty fans with speed control


AC/DC240V Input Redundant Power Supply
1000 / 1600W 1U Redundant Power Supply
Total Output Power	1000W: 100 – 127Vac 1600W: 200 – 240Vac 1600W: 200 – 240Vdc (for CCC only)
Dimension (W x H x L)	73.5 x 40 x 185 mm
Input	100 — 127Vac / 13.8A / 47-63Hz 200 — 240Vac / 9.6A / 47-63Hz 200 — 240Vdc / 8.5A (CCC Only)
+12V	Max: 83A / Min: 0A (1000W) Max: 132A / Min: 0A (1600W)
12Vsb	Max: 2.1A / Min: 0A
Output Type	Gold Finger
Certification	Platinum Certified


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
