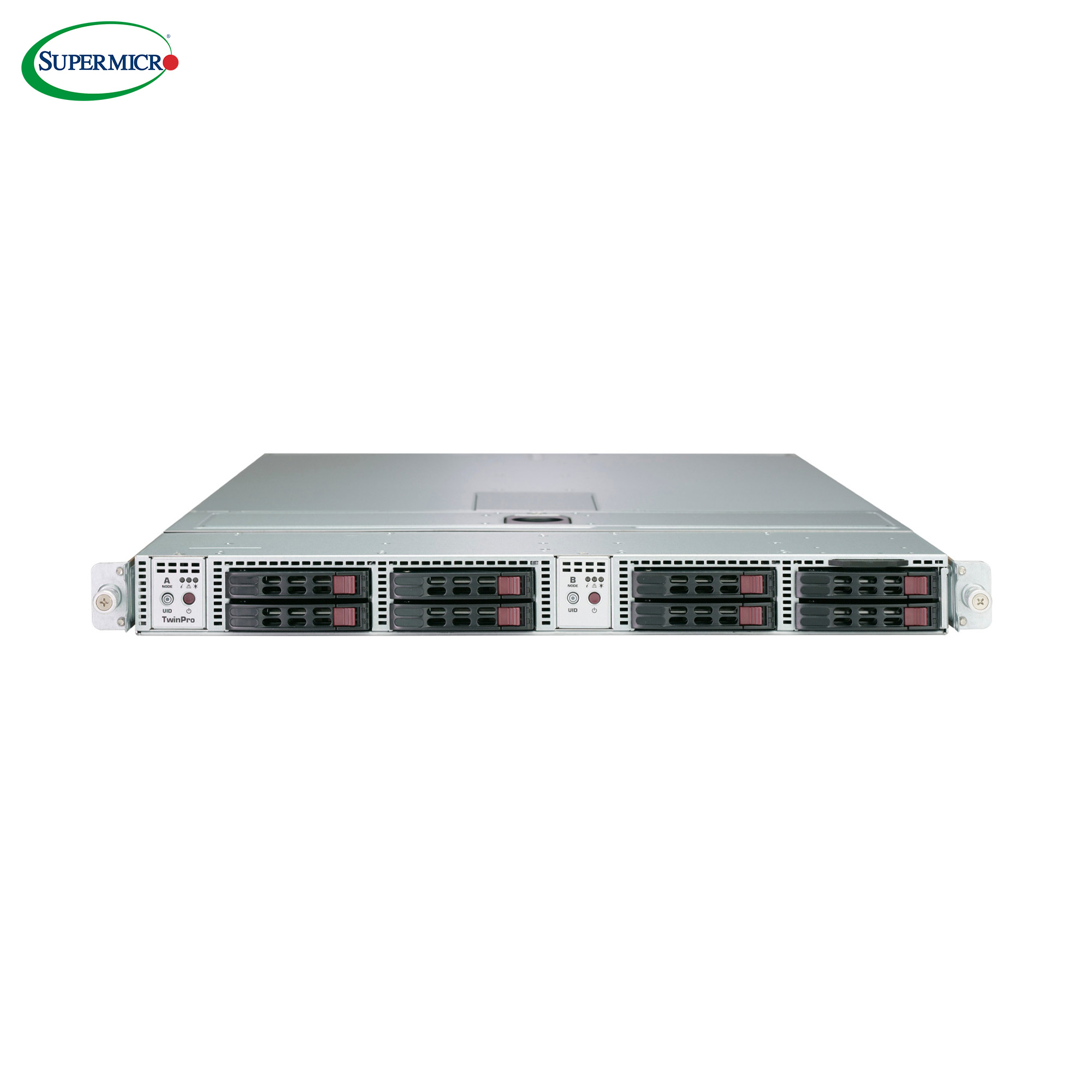

Name: Supermicro SYS-1029TP-DC1R 1U 4-Nodes TwinPro
SKU: 4818

Description

Key Features

Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡
16 DIMMs; up to 4TB 3DS ECC
DDR4-2933MHz^†RDIMM/LRDIMM
2 PCI-E 3.0 x16 slots
Flexible Networking support via SIOM;
Dedicated IPMI 2.0 LAN
4 Hot-swap 2.5″ SAS3 drive bays
Broadcom 3108 SAS3 controller;
RAID 0, 1, 5, 6, 10, 50, 60 with
SuperCap option
2 SuperDOM onboard
Up to 1000W Redundant Power Supplies Titanium Level (96%)

Specifications

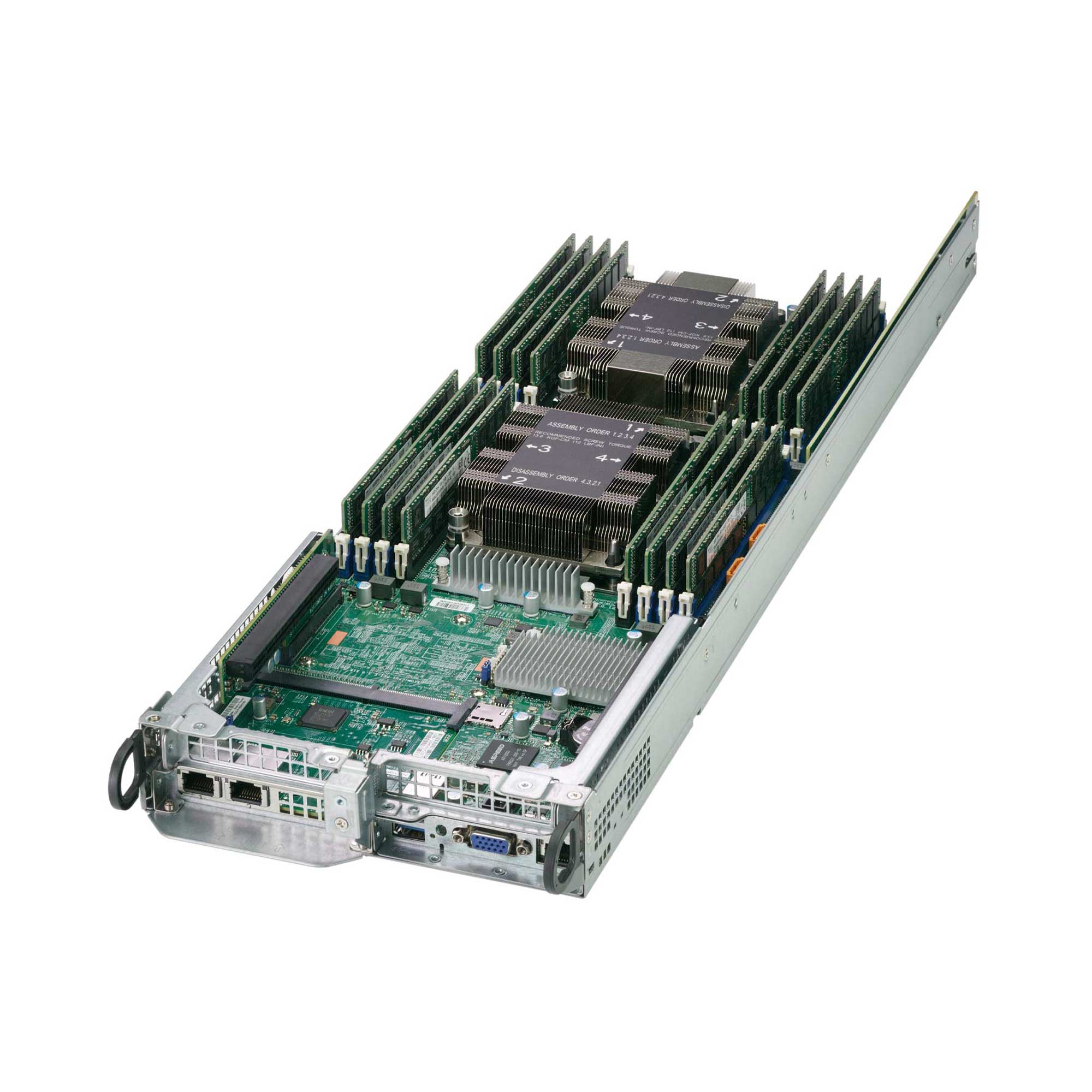

Motherboard (Two per System)

Super X11DPT-PS


Processor (per Node)

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-145W (Consult with SYS PM for higher CPU TDP Supports)
Cores	Up to 28 Cores
Note	*Processors ending N or S are optimized for networking and storage applications. Customer need POC their application and observe any thermal throttling before large deployment.
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory (per Node)

Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Memory Type	2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro


On-Board Devices (per Node)

Chipset	Intel® C621 chipset
SAS	Broadcom 3108 SAS3 (12Gbps) controller; RAID 0, 1, 5, 6, 10, 50, 60 support Optional SuperCap
Network Controllers	Barebones and Complete System must have at least one SIOM card installed per node
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC


Input / Output (per Node)

SAS	4 SAS3 (12Gbps) ports
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
VGA	1 VGA port
Serial Port / Header	1 Fast UART 16550 port / 1 Header (internal)
Others	2 SuperDOM support on the motherboard. SuperDOM is for OS boot.


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 Watchdog
Power Configurations	ACPI Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions and Weight

Width	17.2″ (437mm)
Height	1.7″ (88mm)
Depth	28.25″ (718mm)
Package	29.6″ (W) x 8″ (H) x 38.4″ (L)
Weight	Gross Weight: 48.1 lbs (21.9 kg) Net Weight: 33.5 lbs (15.2 kg)


Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED


Expansion Slots (per Node)

PCI-Express	2 PCI-E 3.0 x16 Low-profile slots 1 SIOM card support Note: Barebones and Complete System must bundle with SIOM (With only one CPU installed, SXB2 M.2 and SXB4 riser card slots not function)

Backplane

SAS3 backplane


System Cooling

Fans	3 Heavy duty counter rotating fans with air shroud and optimal fan speed control


PowerStick Power Supply
1000W 1U Redundant Power Supplies with PMBus
Total Output Power	800W: 100 – 127Vac 1000W: 200 – 240Vac
Dimension (W x H x L)	38 x 40 x 360 mm
Input	100-127Vac / 9-7.5A / 50-60Hz 200-240Vac / 6-5A / 50-60Hz
+12V	Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac)
+5Vsb	Max: 4A / Min: 0A
Output Type	Gold Finger Connector (16 Power Pin, 14 Signal Pin)
Certification	Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
