Description

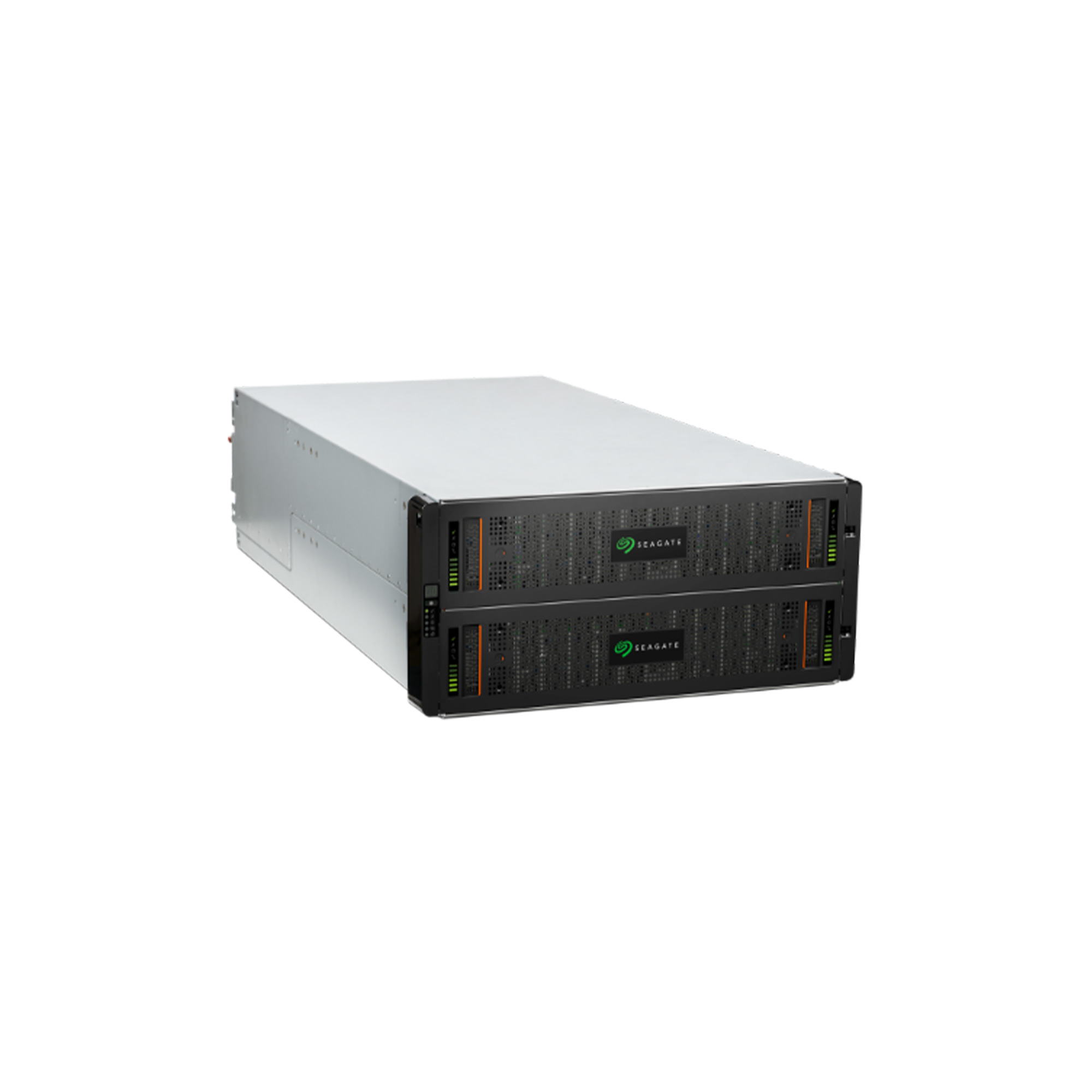

Seagate® Exos™ E 5U84 is the datasphere’s high-capacity, high-performance platform that can handle extreme data growth.
Â
Product Highlights
- Deliver peace of mind with features to protect data, including dual power supplies, fan modules, and I/O modules, as well as dual data paths to all drives
- Reduce power consumption with 80 PLUS Platinum certified power supplies and adaptive cooling technology
- Easily manage cables, universal ports, self-configuration controls, and standardised zoning
- Seamlessly expand to 336 drives as business grows
- Efficiently manage your data centre with a 5U rackmount enclosure and unique drawer design that provides easy access to drives
- Maximum of 28.8 GB/s in a dual controller configuration
Key Advantages
Transfer Data Fast With a 12 Gb/s SAS Interface. Get data to applications when and where it’s needed with up to 12 Gb/s speed, unprecedented capacity, and effective maximum throughput of 14.4 GB/s in a single I/O module or 28.8 GB/s in a dual controller configuration. Even with expansion capability up to 336 hard drives or solid state drives, there is no sacrifice of space for performance.
Deliver a Versatile Architecture Built to Grow. Minimise your TCO and store up to 1.1 PB of data with an enclosure that leads the industry in both density and cost-for-performance while enabling easy expansion via interchangeable FRUs and SBB 2.0 compatibility. This flexible enclosure includes support and capabilities to manage cables, universal ports, self-configuration controls, and standardised zoning while helping you accelerate market introduction of new technologies and significantly simplify development and testing of storage implementations.
Ensure Applications Have Access to Critical Data. Safeguard your data with fault diagnosis, resolution capabilities, persistent error logging, and monitoring while ensuring maximum availability while harnessing high-availability features such as dual cooling, PCMs, and I/O modules, as well as dual data paths to all drives.
Reduce Cost and Resources With Energy-Efficient Features. This enclosure is suited for high -capacity, transaction-dependent environments that demand tighter Service Level Agreement (SLA) requirements and need faster response times for optimal data availability. It meets stringent worldwide requirements for recycling and environmental friendliness, and can help you minimise environmental impact and recognise cost savings through high performance while reducing power consumption with 80 PLUS Platinum certified adaptive cooling technology.
Build In Security at the Foundation of the Data Life Cycle. Protect your most valuable business assets with guaranteed compatible Seagate Secureâ„¢ hard drives.
Specifications | 0 | |
Controller | Dual EBOD storage bridge bay (SBB) 2.1 compatible I/O modules per enclosure | |
 |  | |
Host/Expansion Interface | Three universal ×4 12 Gb/s mini-SAS connectors (SFF-8644) per I/O module | |
 |  | |
Management/Status Reporting | CLI via RS232 and 100Base-T port, SCSI enclosure services (SES) via SAS SFF-8644 ports | |
 |  | |
Maximum System Configuration | Dual host-connected enclosure with a maximum expanded configuration of 4 enclosures for a total of 336 drives | |
 |  | |
Device Support | Dual-ported 12 Gb/s SAS | |
 |  | |
Max Drives per Enclosure | 84 (for a full list of supported drives, please contact your account or sales manager) | |
 |  | |
Hot-Swappable Components | Drives, power supply units (PSU), cooling modules, side planes, and SBB I/O modules | |
 |  | |
Physical | Height: 220 mm / 8.65 in (5 EIA units) | Width: 483 mm / 19 in (IEC rack compliant) | Depth: 933 mm / 36.75 in | Weight: | |
135 kg / 298 lb (with drives, no rail kit) | ||
 | ||
Power Requirements — AC Input |  | |
Input Power Requirements | 180VAC-240VAC, 50Hz/60Hz | |
 |  | |
Max Power Output per PSU | 2200W | |
 |  | |
Environmental/Temperature Ranges | Â | |
Operating/Non-operating Altitude | –100 m to 3000 m (–330 ft to 10,000 ft) / –100 m to 12,192 m (–330 ft to 40,000 ft) | |
 |  | |
Operating/Non-operating Temperature | ASHRAE A2, 5°C to 35°C (41°F to 95°F), derate 1°C / 300m above 900m, 20°C / hr max rate of change / –40°C to | |
70°C (–40°F to 158°F) | ||
 | ||
 |  | |
Operating/Non-operating Humidity | –12°C DP and 10% RH to 21°C DP and 80% RH, max DP 21°C / 5% to 100% non-condensing | |
 |  | |
Operating/Non-operating Shock | 5 Gs, 10ms, half sine pulses/20 Gs, 10ms, half sine pulses | |
 |  | |
Operating/Non-operating Vibration | 0.21 Gs rms (5-500Hz) / 1.04 Gs rms (2-200Hz) | |
 |  | |
Standards/Approvals | Â | |
Safety Certifications | UL 60950-1 (USA and Canada) | EN 60950-1 (European Union) | IEC 60950-1 (CB certification) | |
 |  | |
Ecodesign | Commission Regulation (EU) 2019/424 (Directive 2009/125/EC) | |
 |  | |
 | FCC CFR 47 Part 15 Subpart B Class A (United States) | ICES/NMB-003 Class A (Canada) | EN 55032 Class A, EN | |
Emissions (EMC) | 55024, EN 61000-3-2, EN 61000-3-3 (Europe) | AS/NZS CISPR 32 Class A (Australia/New Zealand) | VCCI Class A | |
 | (Japan) | KN 32 Class A/KN 35 (S. Korea) | CNS 13438 Class A (Taiwan) | |
 |  | |
Standard Marks/Approvals | North America (FCC, UL, cUL, ICES/NMB-003 Class A), Europe (CE), China (CCC – PSU only), Taiwan (BSMI), Korea | |
(KC), Japan (VCCI), Australia/New Zealand (RCM – formerly C-tick) | ||
 | ||
 |  |
