Description
|
UPS Type
|
Tower
|
|
Phase
|
Single phase with ground
|
|
Rating (VA)
|
6000
|
|
Nominal Power (W)
|
5400
|
|
Standard Model
Dimension (mm)
|
369 x 190 x 688 (D x W x H)
|
|
Weight (kg)
|
61
|
|
Long-run Model
Dimestions (mm)
|
369 x 190 x 318 (D x W x H)
|
|
Weight (kg)
|
12
|
INPUT
|
Connection Type
|
Terminal
|
|
Nominal Voltage
|
208/220/230/240VAC
|
|
Voltage Range
|
110-300 VAC (Load at 50%)
176-300 VAC (Load at 100%)
|
|
Frequency Range
|
46~54 Hz or 56~64 Hz
|
|
Power Factor
|
>= 0.99
|
OUTPUT
|
Connection Type
|
Terminal
|
|
Output Voltage
|
208/220/230/240VAC
|
|
Voltage Regulation
|
±1%
|
|
Frequency Range (Synchronized Range)
|
46~54 Hz or 56~64 Hz
|
|
Frequency Range (Batt. Mode)
|
50Hz or 60Hz +/-0.1Hz
|
|
Current Crest Ratio
|
3:1
|
|
Harmonic Distortion
|
≤3% THD (Linear load)
≤5% THD (Non-linear load)
|
ALARM & INDICATORS
|
Battery Mode
|
Sounding every 4 seconds
|
|
Low Battery
|
Sounding every second
|
|
Overload
|
Sounding twice every second
|
|
Fault
|
Continuously sounding
|
|
LCD
|
Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
|
CONNECTIVITY, CONTROL & MONITORING
|
Front panel
|
Status LED, Function keys, LCD display
|
|
Communication
|
Smart RS232*
USB Port
Emergency Power Off (EPO)
|
BATTERY
|
Standard Model
Type
|
12V / 9Ah
|
|
Numbers
|
16
|
|
Typical Recharge Time
|
9 hours recover to 90% capacity
|
|
Long-run Model
Type
|
Depending on the capacity of external batteries
|
|
Number
|
16 ~20 (Adjustable)
|
|
Charging Current (max)
|
1A/2A/4A/6A (Adjustable, 6A is only
available for 16pcs batteries) |

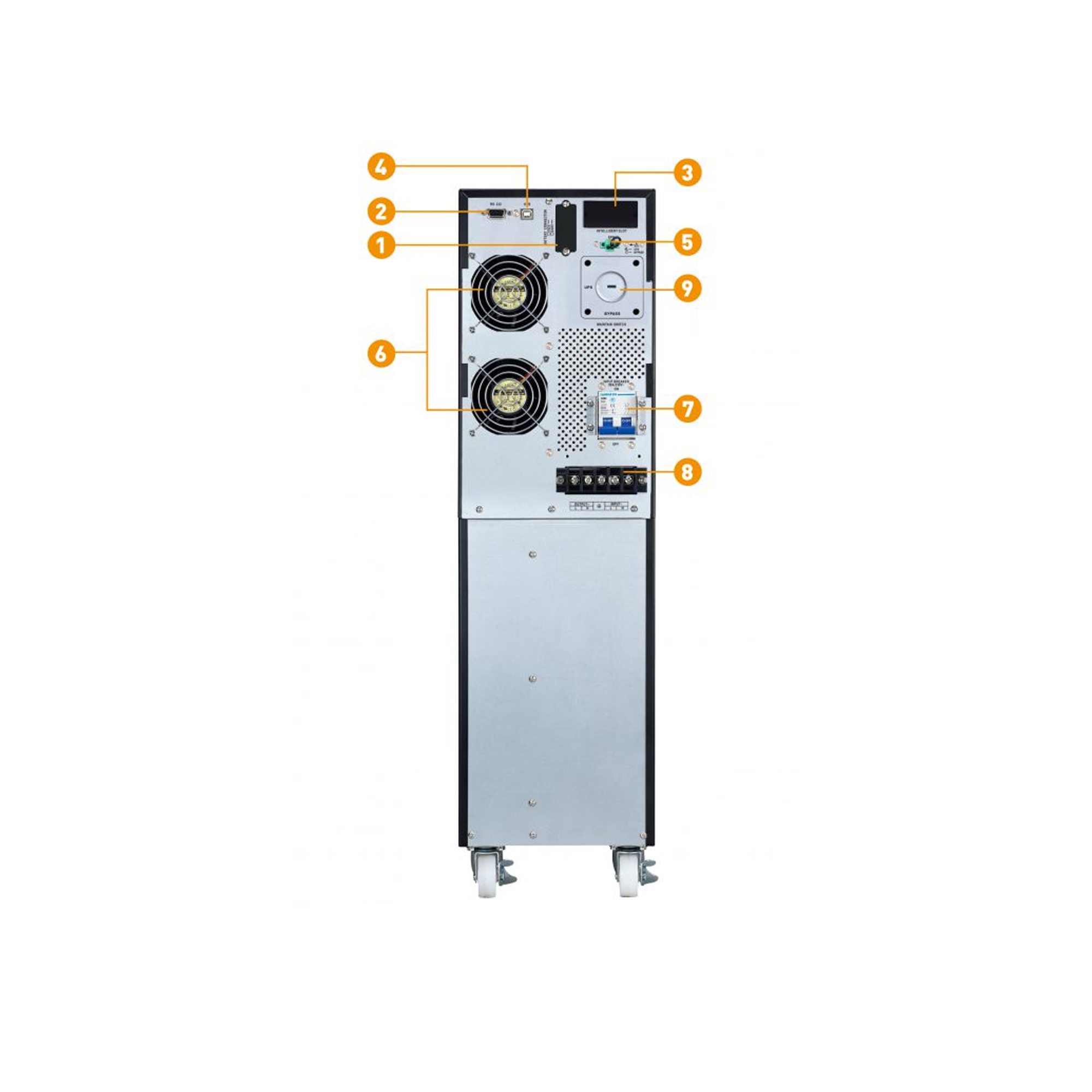

REAR PANEL
-
External battery connector
-
RS-232 communication port
-
Intelligent slow
-
USB Communication port
-
Emergency power off function connector (EPO connector)
-
Cooling fan
-
Input circuit breaker
-
Input/output terminal
-
Maintenance bypass switch (Optional)
