Description
GENERAL
| UPS Type | Tower |
| Phase | Single phase with ground |
| Rating (VA) | 1000 |
| Nominal Power (W) | 800 |
| Standard ModelDimension (mm) | 282 x 145 x 220 (D x W x H) |
| Weight (kg) | 9.8 |
| Long-run ModelDimension (mm) | 282 x 145 x 220Â (D x W x H) |
| Weight (kg) | 4.1 |
INPUT
| Connection Type | IEC 320-C14 |
| Nominal Voltage | 200/208/220/230/240 VAC |
| Voltage Range | 110-300 VAC (Load at 50%)160-280 VAC (Load at 100%) |
| Frequency Range | 45 ~ 70 Hz |
| Power Factor | >= 0.99 |
OUTPUT
| Connection Type | 3 x Universal socket (PRO901WS)2 x Universal socket (PRO901WL) |
| Nominal Voltage | 200/208/220/230/240 VAC |
| Voltage Regulation | ±1% |
| Frequency Range (Synchronized Range) | 47 ~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≤3% THD (Linear load)≤6% THD (Non-linear load) |
ALARM & INDICATORS
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| LCD | Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault |
CONNECTIVITY, CONTROL & MONITORING
| Front panel | Status LED, Function keys, LCD display |
| Communication | Smart RS232*USB Port |
BATTERY
| Standard ModelType | 12V / 9Ah |
| Numbers | 2 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Long-run ModelType | Depending on the capacity of external batteries |
| Number | 2 or 3 |
| Charging Current (max) | 1A / 2A / 4A / 6A Adjustable |

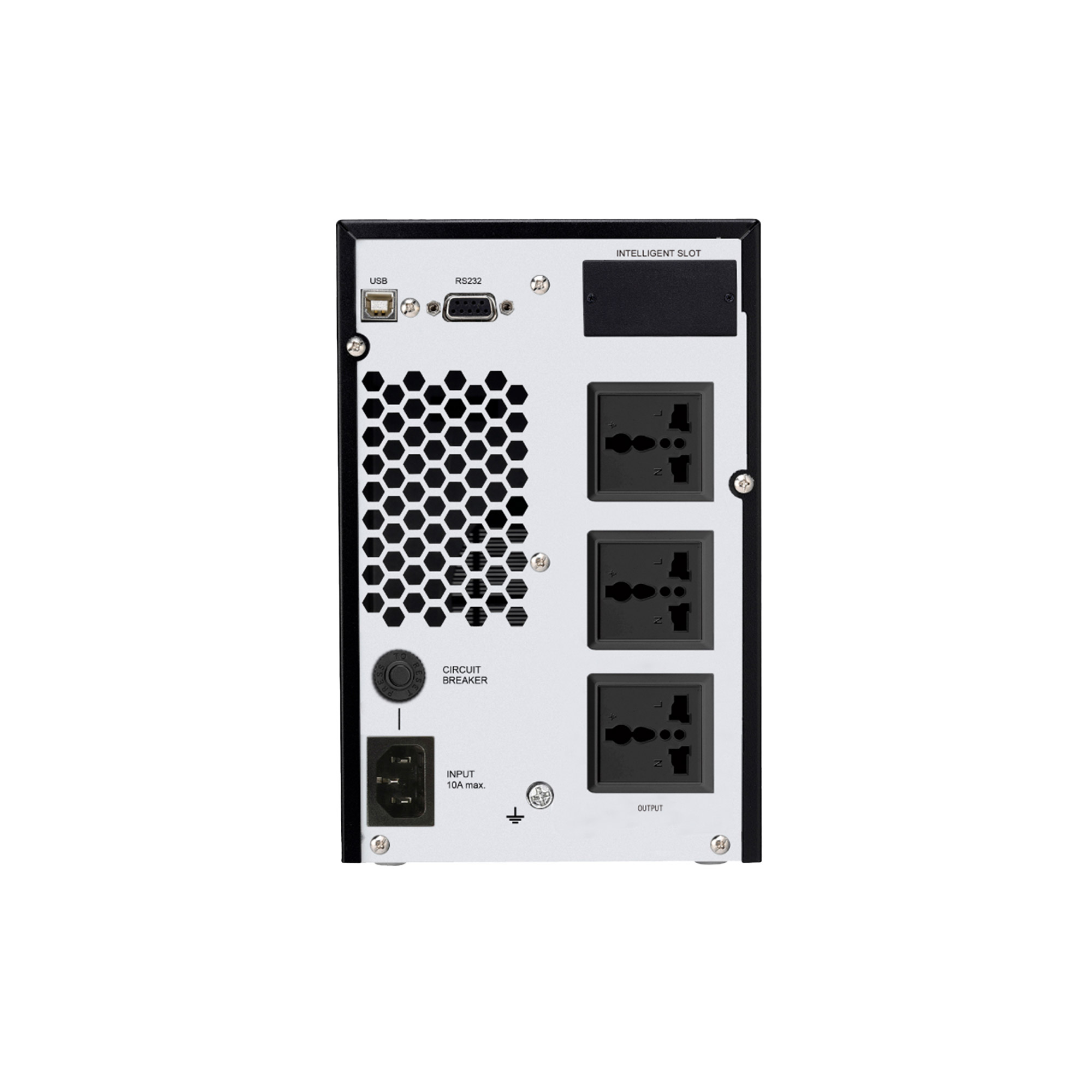

REAR PANEL
| 1. AC Input2. Input circuit breaker
3. USB Communication port 4. RS-232 communication port 5. Intelligent slot 6. External battery connection (Only available for L model) 7. Output receptacles |
