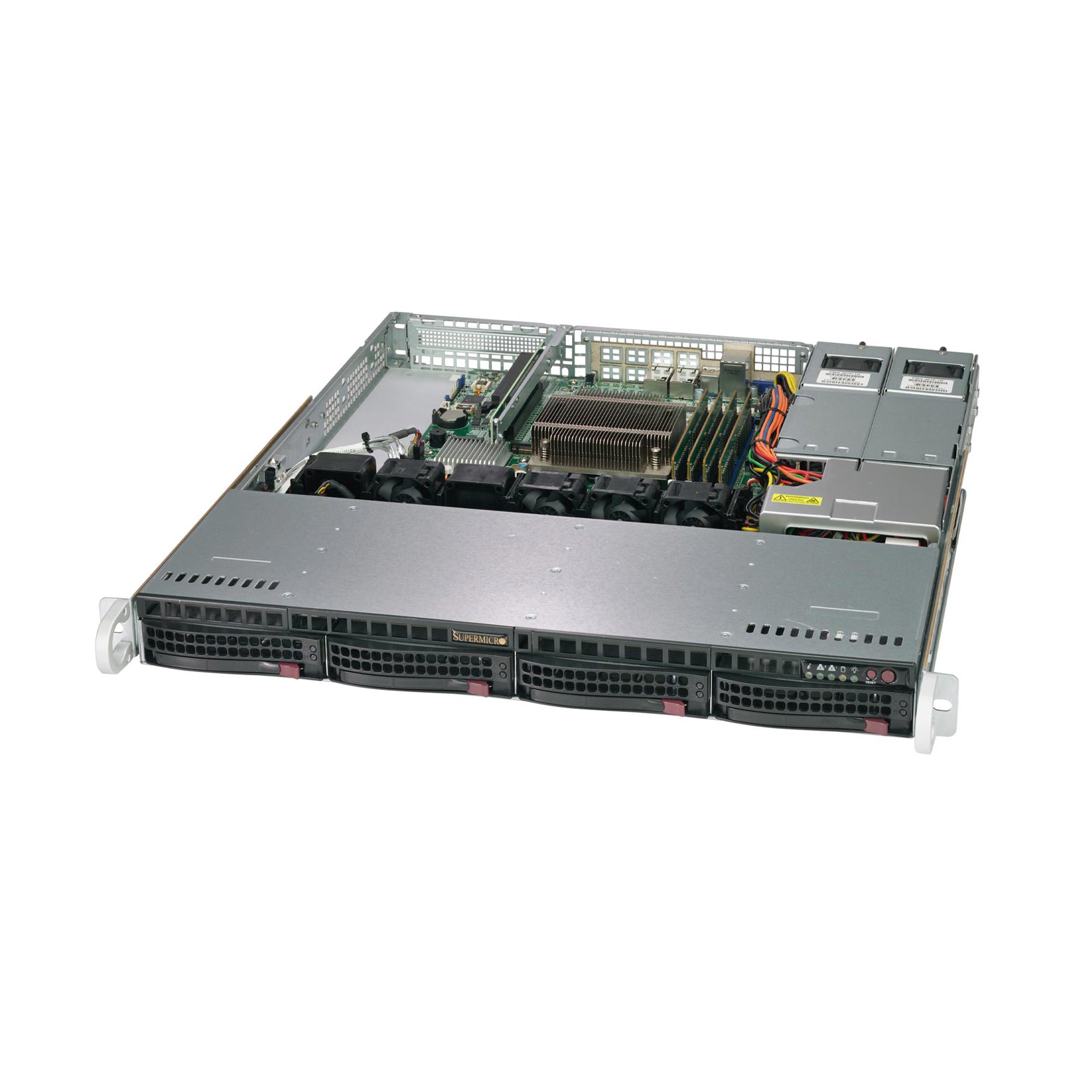

Name: Supermicro SYS-5019C-MR 1U Rackmount Mainstream
SKU: 4826

Description

Key Features

Single Socket H4 (LGA 1151) supports
Intel® Xeon® processor E-2100 /
E-2200 series, 8th/9th Gen.
Intel® Core™ i3 Processors,
Intel® Celeron®, Intel® Pentium®
Intel® C246 chipset
Up to 128GB ECC UDIMM, up to
DDR4-2666MHz; 4 DIMM slots
1 PCI-E 3.0 x16 slot
4 Hot-swap 3.5″ drive bays
2 Interface:
1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
M.2 Form Factor:2280/22110
M.2 Key: M-Key
2 GbE LAN ports, 1 dedicated IPMI LAN
2 USB 3.1 (rear), 2 USB 2.0 (rear)
1 VGA, 1 COM (header), 1 TPM header
400W High efficiency (96%) Redundant PSU; Platinum Level

Specifications

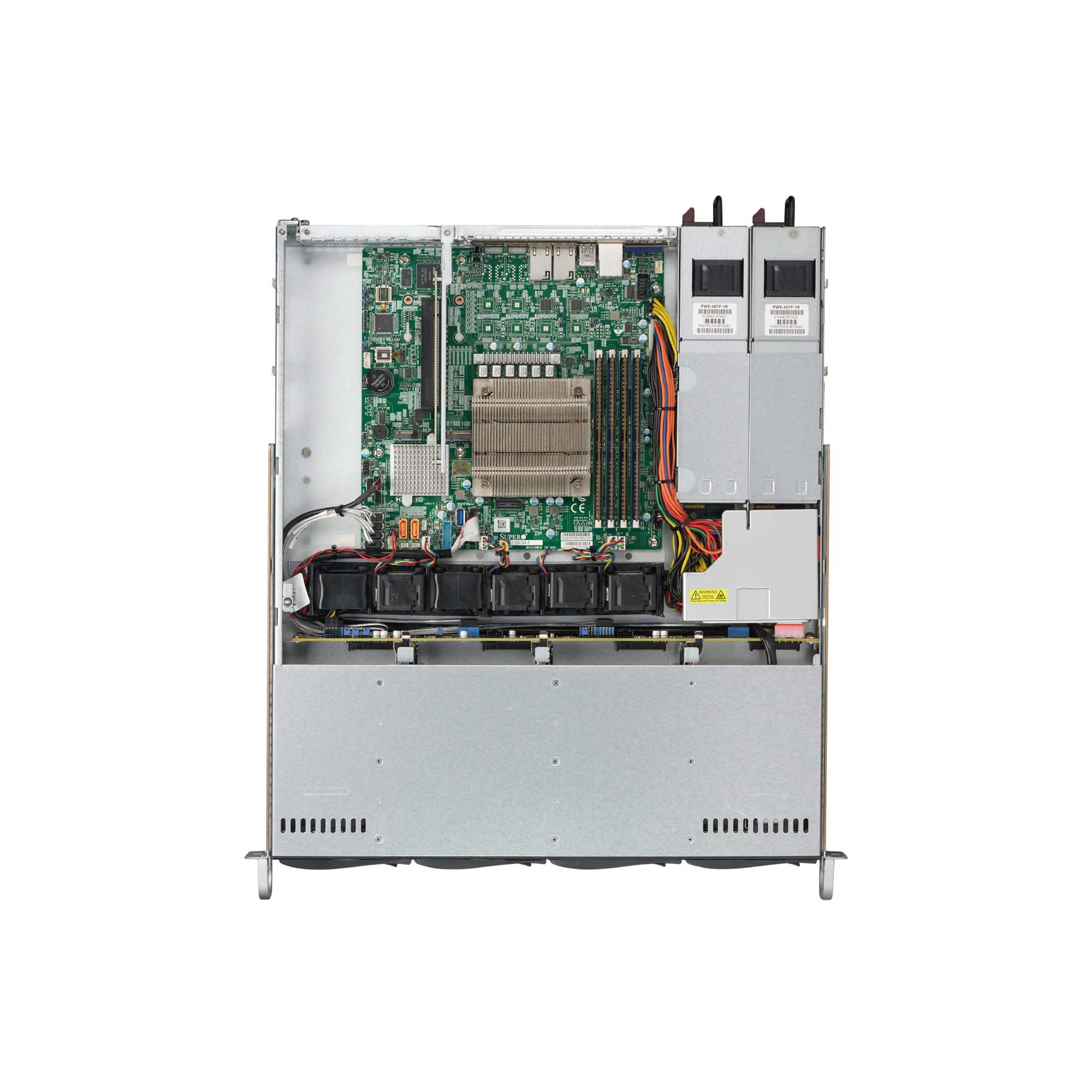

Motherboard

Super X11SCM-F


Processor

CPU	Single Socket H4 (LGA 1151), CPU TDP support up to 95W Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores	8 cores, 16 threads
Note	BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series


System Memory

Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC UDIMM Up to DDR4-2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes	32GB, 16GB, 8GB, 4GB


On-Board Devices

Chipset	Intel® C246 chipset
SATA	SATA3 (6Gbps) via Intel C246 controller RAID 0, 1, 5, 10 support
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with Intel® I210-AT
Video	ASPEED AST2500 BMC

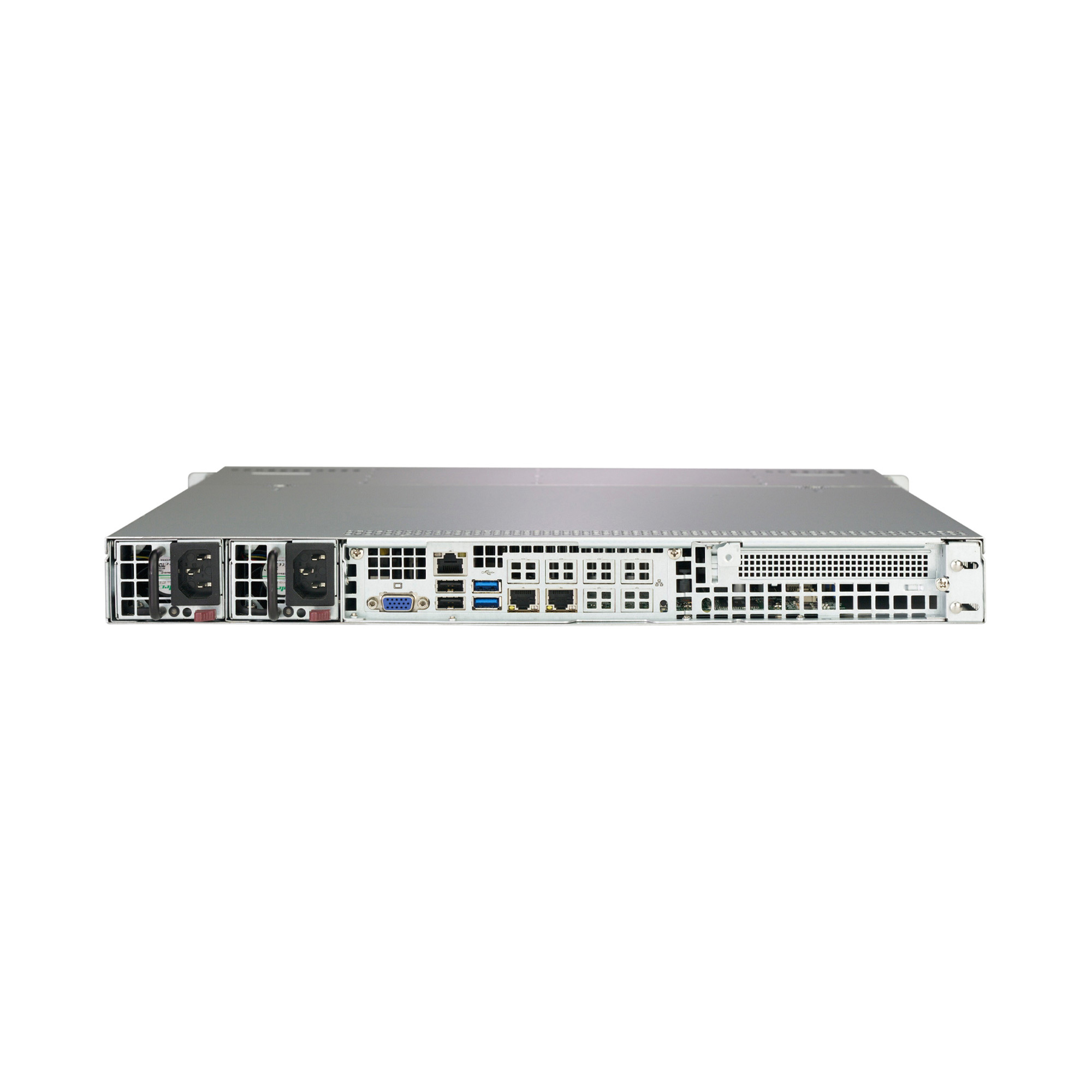

Input / Output

SATA	6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.1 ports (rear) 2 USB 2.0 ports (rear)
Video	1 VGA port
Serial Port / Header	1 COM port (header)
TPM	1 TPM 2.0 Header


System BIOS

BIOS Type	UEFI 256Mb
BIOS Features	ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0


Management

Software	Intel® Node Manager IPMI 2.0 NMI SSM, SPM, SUM Watch Dog SuperDoctor® 5


Dimensions and Weight

Height	1.7″ (43mm)
Width	17.2″ (437mm)
Depth	19.85″ (503mm)
Package	8.5″ (H) x 23.4″ (W) x 29.7″ (D)
Weight	Gross Weight: 34 lbs (15.42 kg) Net Weight: 21 lbs (9.53 kg)
Available Colors	Black

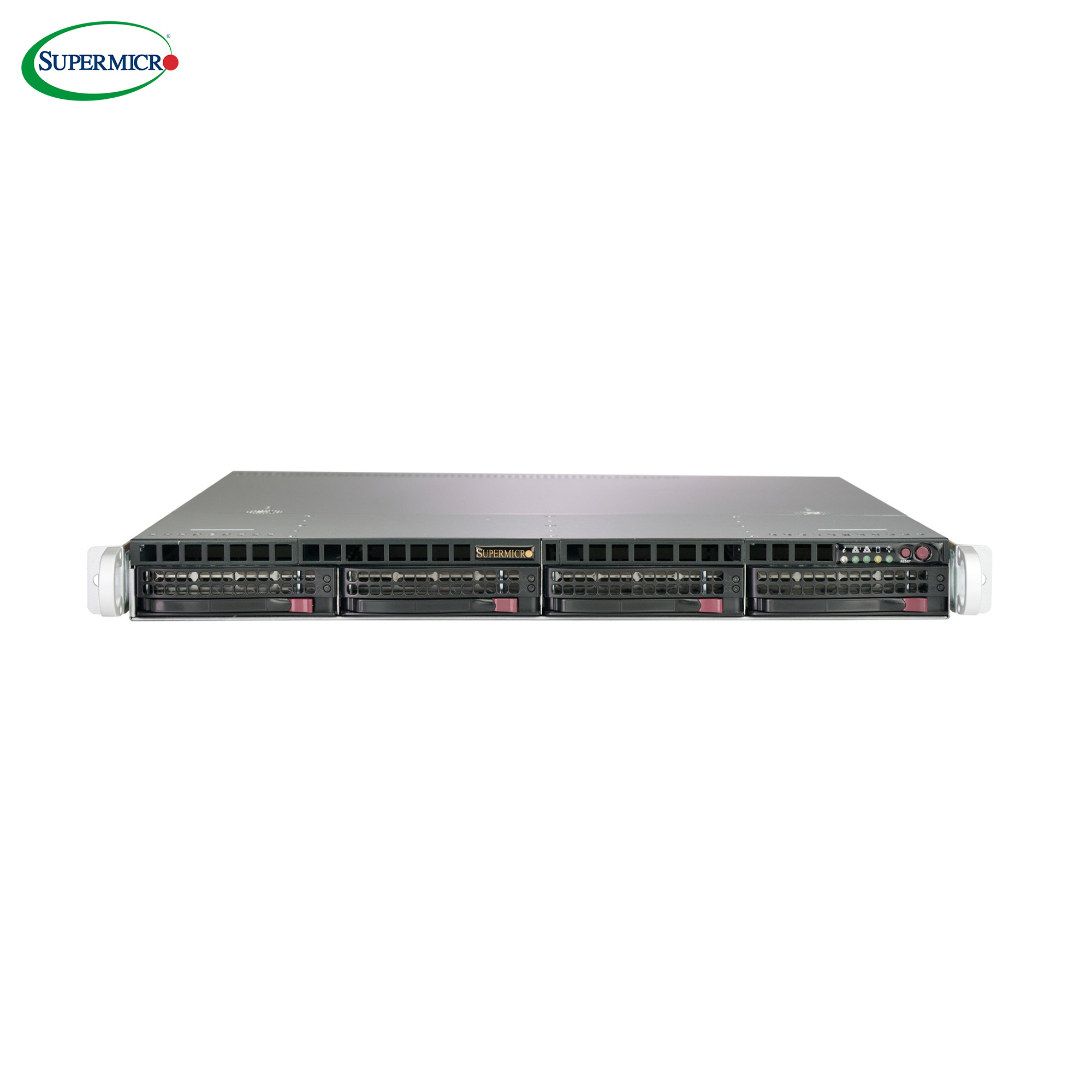

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Information LED


Expansion Slots

PCI-Express	1 PCI-E 3.0 x16 slot
M.2	M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key


AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power	400W
Dimension (W x H x L)	54.5 x 40 x 220 mm
Input	100 – 240Vac / 6.0 – 3.0A / 50-60Hz 200 – 240Vdc / 3.4 – 3.2A (CCC Only)
+12V	Max: 33A / Min: 0.5A
+5V sb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Certification	Platinum Level Certified [ Test Report ]


PC Health Monitoring

CPU	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature	Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
