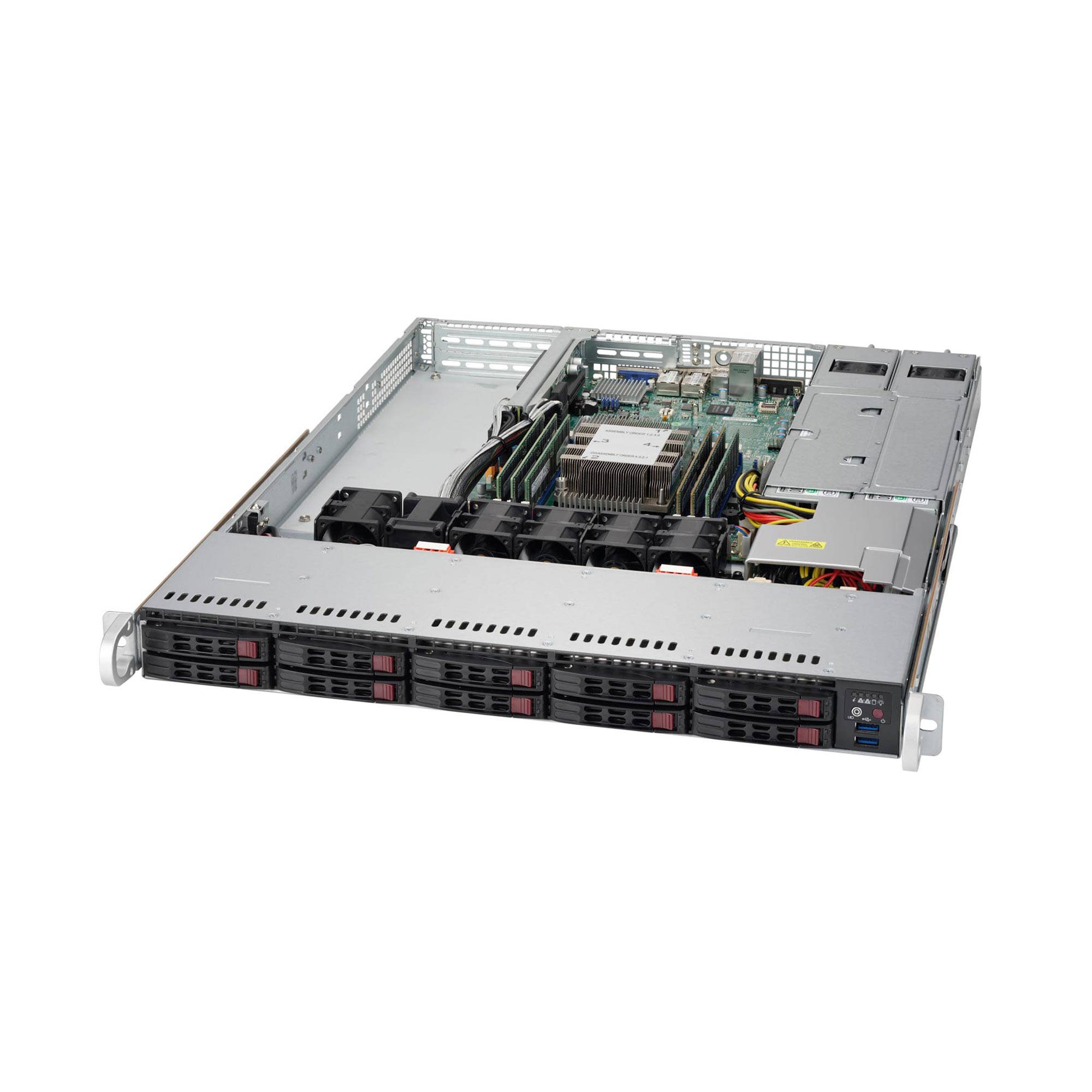

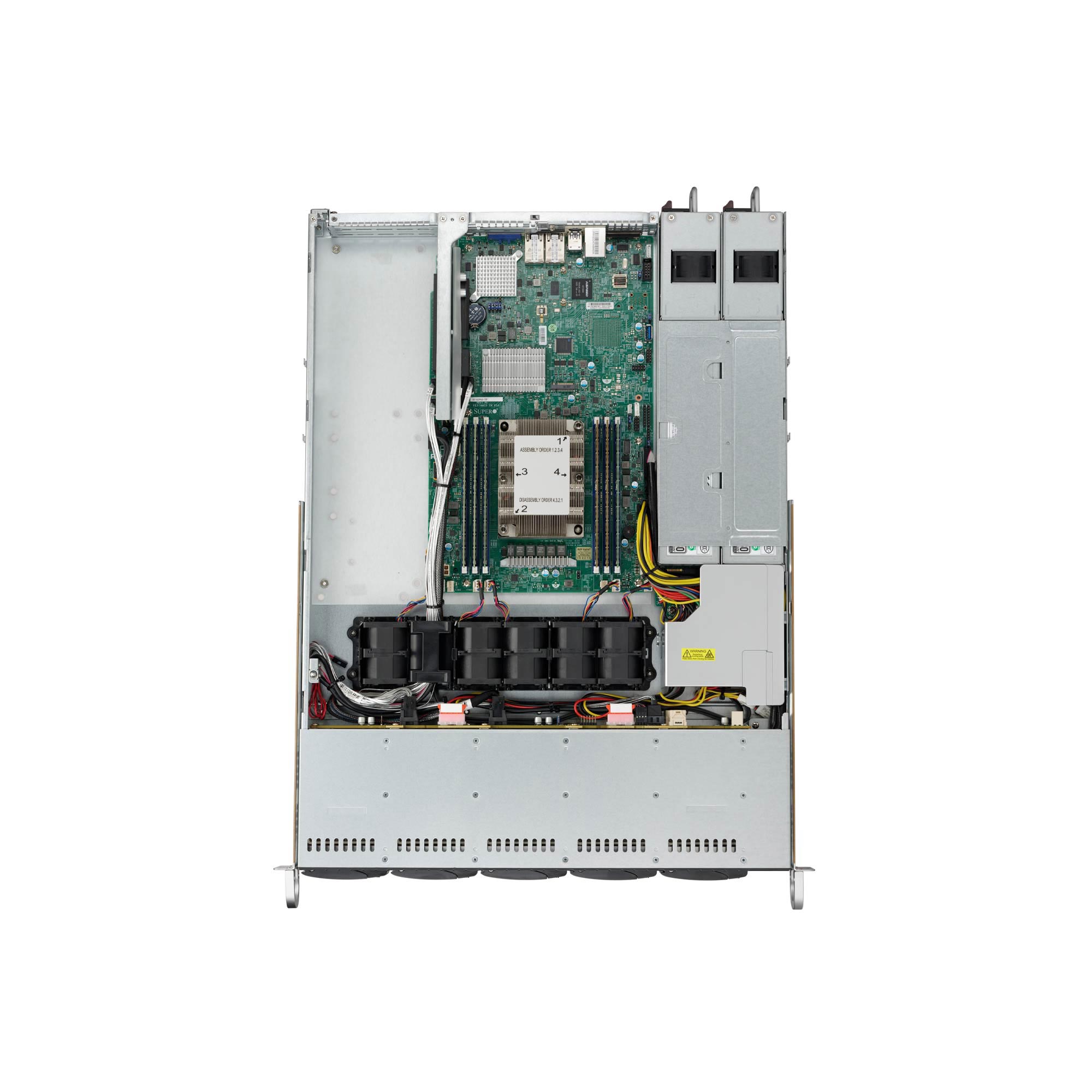

Name: Supermicro SYS-1019P-WTR 1U Rackmount WIO
SKU: 4828

Description

Key Features

Single Socket P (LGA 3647) supports
2nd Gen Intel® Xeon® Scalable
processor (Cascade Lake/Skylake)^‡
6 DIMMs; up to 1.5TB 3DS ECC
DDR4-2933MHz^†RDIMM/LRDIMM
2 PCI-E 3.0 x16 (FHFL) slots,
1 PCI-E 3.0 x8 (LP) slot
10 Hot-swap 2.5″ SATA3
drive bays (2 hybrid NVMe w/ AOC option)
2x 10GBase-T ports with Intel X722 + X557
1 VGA, 1 COM, 4 USB 3.0, 2 USB 2.0
500W Redundant Platinum Level power supplies

Specifications

Motherboard

Super X11SPW-TF


Processor/Cache

CPU	Single Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡ Support CPU TDP 70-205W*
Cores	Up to 28 Cores
Note	* Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.
Note	^‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)


System Memory

Memory Capacity	6 DIMM slots Up to 1.5TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM
Memory Type	2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro ^†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C622 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual 10GBase-T LAN with Intel® X722 + X557
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC


Input / Output

SATA	10 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) 7 USB 2.0 ports (2 rear + 5 headers)
Video	1 VGA port
Serial Port / Header	2 COM ports (1 rear, 1 header)
SuperDOM	Ports default connect to hard drive bays


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions and Weight

Height	1.7″ (43mm)
Width	17.2″ (437mm)
Depth	23.5″ (597mm)
Package	24″ (W) x 8″ (H) x 32″ (L)
Weight	Gross Weight: 27 lbs (12.25 kg) Net Weight: 15.5 lbs (7.03 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Information LED Information LED (temp., status)


Expansion Slots

PCI-Express	2 PCI-E 3.0 x16 (FHFL) slots 1 PCI-E 3.0 x8 (LP) slot
M.2	1x M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector


Drive Bays

Hot-swap	10 Hot-swap 2.5″ SATA3 drive bays 2 NVMe with AOC (option)


System Cooling

Fans	5 counter-rotation 40x56mm PWM fans 1 fan for AOC cooling (option)


Power Supply
500W Redundant Power Supplies with PMBus
Total Output Power	500W: 100 – 240Vac
Dimension (W x H x L)	54.5 x 40.25 x 320 mm
Input	100-240Vac, 50-60Hz, 6.1-2.6A
+12V	Max: 42A / Min: 0.5A
+5Vsb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor	+5V: 25A +3.3V: 12A -12V: 0.6A
Certification	Platinum Certified [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Additional information

Brand	Supermicro
