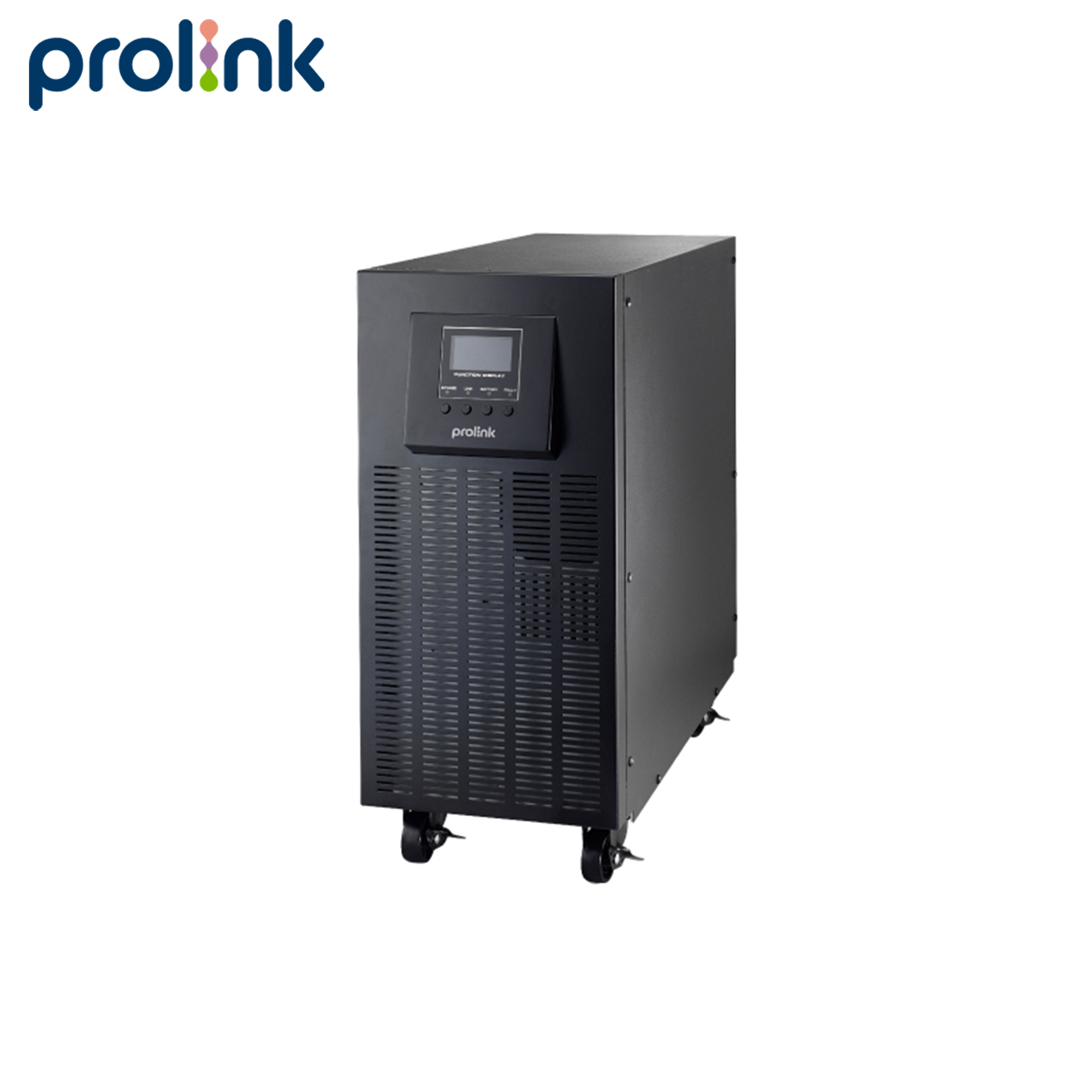

Description
GENERAL
| UPS Type | Rack / Tower |
| Phase | 1 phase in / 1 phase out |
| Rating (VA) | 10000 |
| Nominal Power (W) | 10000 |
| Standard ModelDimension (mm) | UPS Unit: 610 x 438 x 88 [2U]Â (D x W x H)Battery Pack: 600 x 438 x 133 [3U] (D x W x H) |
| Weight (kg) | UPS Unit: 20Battery Pack: 63 |
| Long-run ModelDimension (mm) | 610 x 438 x 88 [2U] (D x W x H) |
| Weight (kg) | 20 |
INPUT
| Connection Type | Terminal |
| Nominal Voltage | 208/220/230/240 VAC VAC |
| Voltage Range | 110~300VAC ± 3% at 50% load176~300VAC ± 3% at 100% load |
| Frequency Range | 46~54 Hz â—Ž 50Hz / 56~64 Hz â—Ž 60Hz |
| Power Factor | ≧0.99 |
| THDi | < 4% @100% Load< 6% @50% Load |
OUTPUT
| Connection Type | Terminal |
| Nominal Voltage | 208*/220/230/240 VAC |
| Voltage Regulation | ±1% |
| Frequency Range (Synchronized Range) | 46~54 Hz â—Ž 50Hz / 56~64 Hz â—Ž 60Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | ≦1% THD (Linear load)≦4% THD (Non-linear load) |
ALARM & INDICATORS
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| LCD | Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault |
CONNECTIVITY, CONTROL & MONITORING
| Front panel | Status LED, Function keys, LCD display |
| Communication | Smart RS232*USB Port
Emergency Power Off (EPO) |
BATTERY
| Standard ModelType | 12V / 9Ah |
| Numbers | 20 |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Long-run ModelType | Depending on the capacity of external batteries |
| Numbers | 16 – 20 ** |
| Charging Current (max) | 4.0 A |
REAR PANEL
|
